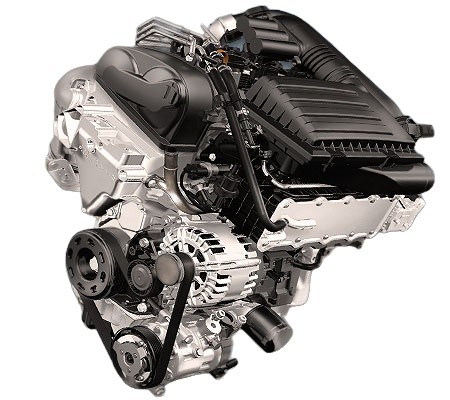

The 1.4-liter four-cylinder turbo Volkswagen DJVA was produced from 2017 to 2018 and was installed on the Volkswagen Tiguan. This EA211 engine has direct injection, a MHI TD025L turbocharger and a timing belt and produces 150 hp and 250 Nm. This version is fitted with a petrol particulate filter (GPF). It has ACT cylinder deactivation.
1.4 TSI EA211 family: DJKA, CZEA, CZDA, CZCA, CXSA, CMBA, CHPA, CHPB, CVNA, CXSB, CZCC, CZDD, CSSA, CSTA, CZCB, CZDB, CZDC, CZTA, DAGA, DBVA, DGXA, DJKD, DJRA, DJSA, DJVA, DLEA, DSBA, DUTA.
Specifications
| Production years | 2017-2018 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 250 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80.0 |
| Compression ratio | 10.0 |
| Features | ACT, GPF |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on all shafts |
| Turbocharging | MHI TD025L |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6d |
| Fuel consumption, L/100 km (for VW Tiguan 2018) — city — highway — combined |
8.8 5.6 6.8 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 107 |
The engine was installed on:
- Volkswagen Tiguan 2 (AD) in 2017 – 2018.
Disadvantages of the Volkswagen DJVA engine
- A reliable turbo engine with a long life, but only if you do not save on maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- Use quality fuel, otherwise there is a risk of detonation;
- Watch the timing belt: if it breaks, the valves usually bend;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Volkswagen DJVA
How much power does the Volkswagen DJVA make?
The Volkswagen DJVA develops 150 hp and 250 Nm of torque.
How much oil does the Volkswagen DJVA take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DJVA have a timing belt or chain?
The Volkswagen DJVA uses a timing belt.
Is the Volkswagen DJVA turbocharged?
Yes, the Volkswagen DJVA is turbocharged (MHI TD025L).
Does the Volkswagen DJVA need valve clearance adjustment?
No, the Volkswagen DJVA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DJVA last?
The typical lifespan of the Volkswagen DJVA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DJVA?
VW Tiguan 2018: city 8.8, highway 5.6, combined 6.8 L/100 km.
What cars was the Volkswagen DJVA installed on?
Volkswagen Tiguan 2 (AD) in 2017 - 2018.
What are the common problems of the Volkswagen DJVA?
A reliable turbo engine with a long life, but only if you do not save on maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
