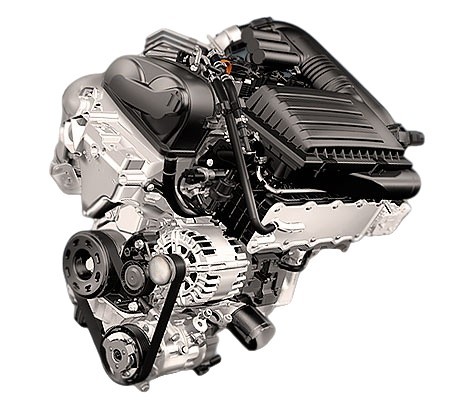

The 1.4-liter four-cylinder turbo Volkswagen CZTA was produced from 2016 to 2018 and was installed on the Volkswagen Jetta. This EA211 engine has direct injection, an IHI RHF3 turbocharger and a timing belt and produces 150 hp and 250 Nm.
1.4 TSI EA211 family: DJKA, CZEA, CZDA, CZCA, CXSA, CMBA, CHPA, CHPB, CVNA, CXSB, CZCC, CZDD, CSSA, CSTA, CZCB, CZDB, CZDC, CZTA, DAGA, DBVA, DGXA, DJKD, DJRA, DJSA, DJVA, DLEA, DSBA, DUTA.
Specifications
| Production years | 2016-2018 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 250 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80.0 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at intake and exhaust |
| Turbocharging | IHI RHF3 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Volkswagen Jetta 2017) — city — highway — combined |
8.4 5.9 6.8 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 107 |
The engine was installed on:
- Volkswagen Jetta 6 (1B) in 2016 – 2018.
Disadvantages of the Volkswagen CZTA engine
- A reliable turbo engine with a long life, but only if you do not save on maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- Use quality fuel, otherwise there is a risk of detonation;
- Watch the timing belt: if it breaks, the valves usually bend;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Volkswagen CZTA
How much power does the Volkswagen CZTA make?
The Volkswagen CZTA develops 150 hp and 250 Nm of torque.
How much oil does the Volkswagen CZTA take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen CZTA have a timing belt or chain?
The Volkswagen CZTA uses a timing belt.
Is the Volkswagen CZTA turbocharged?
Yes, the Volkswagen CZTA is turbocharged (IHI RHF3).
Does the Volkswagen CZTA need valve clearance adjustment?
No, the Volkswagen CZTA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen CZTA last?
The typical lifespan of the Volkswagen CZTA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen CZTA?
Volkswagen Jetta 2017: city 8.4, highway 5.9, combined 6.8 L/100 km.
What cars was the Volkswagen CZTA installed on?
Volkswagen Jetta 6 (1B) in 2016 - 2018.
What are the common problems of the Volkswagen CZTA?
A reliable turbo engine with a long life, but only if you do not save on maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
