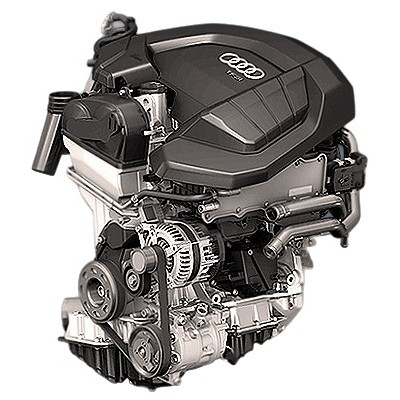

The 1.4-liter four-cylinder turbo Audi CVNA was produced from 2015 to 2020 and was installed on the Audi A4 and Audi A5. This EA211 engine has direct injection, a MHI TD025L turbocharger and a timing belt and produces 150 hp and 250 Nm.
1.4 TSI EA211 family: DJKA, CZEA, CZDA, CZCA, CXSA, CMBA, CHPA, CHPB, CVNA, CXSB, CZCC, CZDD, CSSA, CSTA, CZCB, CZDB, CZDC, CZTA, DAGA, DBVA, DGXA, DJKD, DJRA, DJSA, DJVA, DLEA, DSBA, DUTA.
Specifications
| Production years | 2015-2020 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 250 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80.0 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | MHI TD025L |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Audi A4 1.4 TFSI 2017) — city — highway — combined |
7.0 4.8 5.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 109 |
The engine was installed on:
- Audi A4 B9 (8W) in 2015 – 2020;
- Audi A5 2 (F5) in 2017 – 2018.
Disadvantages of the Audi CVNA engine
- A reliable turbo engine with a long life, but only if you do not save on maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- Use quality fuel, otherwise there is a risk of detonation;
- Watch the timing belt: if it breaks, the valves usually bend;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Audi CVNA
How much power does the Audi CVNA make?
The Audi CVNA develops 150 hp and 250 Nm of torque.
How much oil does the Audi CVNA take and which one?
Engine oil capacity: 4.3 liters. Recommended oil: 5W-30.
Does the Audi CVNA have a timing belt or chain?
The Audi CVNA uses a timing belt.
Is the Audi CVNA turbocharged?
Yes, the Audi CVNA is turbocharged (MHI TD025L).
Does the Audi CVNA need valve clearance adjustment?
No, the Audi CVNA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Audi CVNA last?
The typical lifespan of the Audi CVNA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Audi CVNA?
Audi A4 1.4 TFSI 2017: city 7.0, highway 4.8, combined 5.5 L/100 km.
What cars was the Audi CVNA installed on?
Audi A4 B9 (8W) in 2015 - 2020; Audi A5 2 (F5) in 2017 - 2018.
What are the common problems of the Audi CVNA?
A reliable turbo engine with a long life, but only if you do not save on maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
