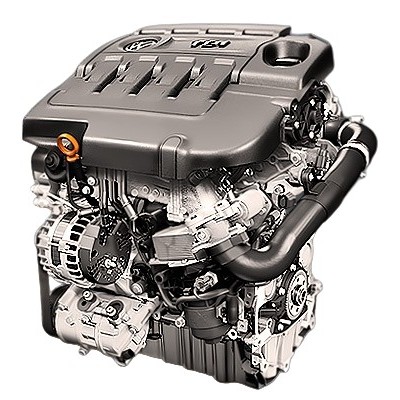

The 2.0-liter turbodiesel Volkswagen CKFC was produced from 2012 to 2015 and was installed on the Seat Leon, Skoda Octavia and Volkswagen Golf. This EA288 diesel has Common Rail injection, a BMTS BM70B turbocharger and a timing belt and produces 150 hp and 320 Nm.
2.0 TDI EA288 family: CRLB, CRMB, DBGC, DFGA, DFBA, DAUA, CRBC, DBGA, CUVC, DFHA, CRVC, CKFC, CUPA, CVCA, CYKA, CUNA, CUUB, CUWA, DFCA, CUAA, DFFA, DFSD, DLUB.
Specifications
| Production years | 2012-2015 |
| Displacement, cc | 1968 |
| Fuel system | Common Rail |
| Power output, hp | 150 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81.0 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 16.2 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | BMTS BM70B |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.7 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Skoda Octavia 2014) — city — highway — combined |
4.9 3.7 4.1 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 180 |
The engine was installed on:
- Seat Leon 3 (5F) in 2012 – 2015;
- Skoda Octavia 3 (5E) in 2012 – 2015;
- Volkswagen Golf 7 (5G) in 2012 – 2014.
Disadvantages of the Volkswagen CKFC engine
- Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common;
- The switchable water pump is a frequent cause of overheating;
- The Bosch fuel system with 1800-2000 bar injectors does not tolerate poor diesel;
- When replacing the timing belt, do not forget the separate belt of the oil and vacuum pump; if the timing belt breaks, the valves bend;
- Other problems are related to clogging of the particulate filter and EGR valve.
Frequently asked questions about the Volkswagen CKFC
How much power does the Volkswagen CKFC make?
The Volkswagen CKFC develops 150 hp and 320 Nm of torque.
How much oil does the Volkswagen CKFC take and which one?
Engine oil capacity: 4.7 liters. Recommended oil: 5W-30.
Does the Volkswagen CKFC have a timing belt or chain?
The Volkswagen CKFC uses a timing belt.
Is the Volkswagen CKFC turbocharged?
Yes, the Volkswagen CKFC is turbocharged (BMTS BM70B).
Does the Volkswagen CKFC need valve clearance adjustment?
No, the Volkswagen CKFC has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen CKFC last?
The typical lifespan of the Volkswagen CKFC is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen CKFC?
Skoda Octavia 2014: city 4.9, highway 3.7, combined 4.1 L/100 km.
What cars was the Volkswagen CKFC installed on?
Seat Leon 3 (5F) in 2012 - 2015; Skoda Octavia 3 (5E) in 2012 - 2015; Volkswagen Golf 7 (5G) in 2012 - 2014.
What are the common problems of the Volkswagen CKFC?
Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common. The switchable water pump is a frequent cause of overheating. All known problems.
