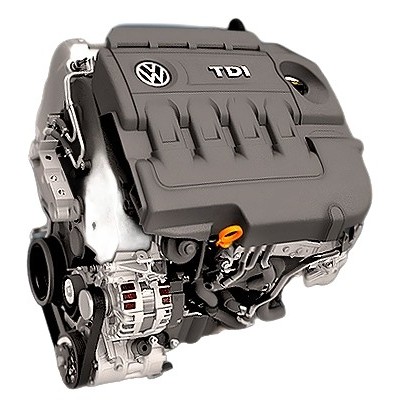

The 2.0-liter turbodiesel Volkswagen DFSD was produced from 2015 to 2020 and was installed on the Volkswagen Caddy. This EA288 diesel has Common Rail injection, a BMTS BM70B turbocharger and a timing belt and produces 102 hp and 250 Nm.
2.0 TDI EA288 family: CRLB, CRMB, DBGC, DFGA, DFBA, DAUA, CRBC, DBGA, CUVC, DFHA, CRVC, CKFC, CUPA, CVCA, CYKA, CUNA, CUUB, CUWA, DFCA, CUAA, DFFA, DFSD, DLUB.
Specifications
| Production years | 2015-2020 |
| Displacement, cc | 1968 |
| Fuel system | Common Rail |
| Power output, hp | 102 |
| Torque output, Nm | 250 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81.0 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 16.2 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | BMTS BM70B |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.7 |
| Fuel type | diesel |
| Euro standards | EURO 6 / 6d-TEMP |
| Fuel consumption, L/100 km (for Volkswagen Caddy 2019) — city — highway — combined |
5.8 4.2 4.7 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 180 |
The engine was installed on:
- Volkswagen Caddy 4 (SA) in 2015 – 2020.
Disadvantages of the Volkswagen DFSD engine
- Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common;
- The switchable water pump is a frequent cause of overheating;
- The Bosch fuel system with 1800-2000 bar injectors does not tolerate poor diesel;
- When replacing the timing belt, do not forget the separate belt of the oil and vacuum pump; if the timing belt breaks, the valves bend;
- Other problems are related to clogging of the particulate filter and EGR valve.
Frequently asked questions about the Volkswagen DFSD
How much power does the Volkswagen DFSD make?
The Volkswagen DFSD develops 102 hp and 250 Nm of torque.
How much oil does the Volkswagen DFSD take and which one?
Engine oil capacity: 4.7 liters. Recommended oil: 5W-30.
Does the Volkswagen DFSD have a timing belt or chain?
The Volkswagen DFSD uses a timing belt.
Is the Volkswagen DFSD turbocharged?
Yes, the Volkswagen DFSD is turbocharged (BMTS BM70B).
Does the Volkswagen DFSD need valve clearance adjustment?
No, the Volkswagen DFSD has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DFSD last?
The typical lifespan of the Volkswagen DFSD is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DFSD?
Volkswagen Caddy 2019: city 5.8, highway 4.2, combined 4.7 L/100 km.
What cars was the Volkswagen DFSD installed on?
Volkswagen Caddy 4 (SA) in 2015 - 2020.
What are the common problems of the Volkswagen DFSD?
Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common. The switchable water pump is a frequent cause of overheating. All known problems.
