Engine Volkswagen DBGC

Engine Volkswagen DBGC
Displacement
2.0 L1968 cc
Power
150 hp
Torque
340 Nm
Timing drive
Belt
Engine oil
5.7 L5W-30
Lifespan
~330 000 km

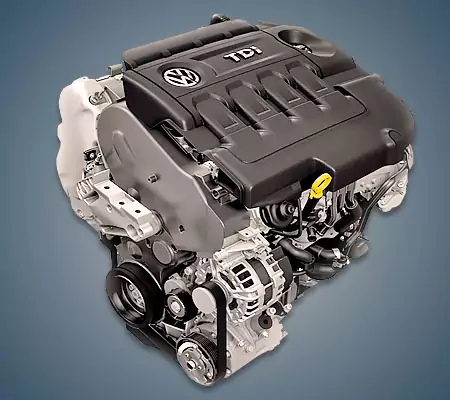

The 2.0-liter Volkswagen DBGC 2.0 TDI diesel engine has been assembled by the concern since 2016 and is installed on the company’s most famous crossovers: the Skoda Kodiaq and the second generation Tiguan. This motor is essentially an environmentally simplified modification of a diesel engine with the DFGA index.

2.0 TDI EA288 family: CRLB, CRMB, DBGC, DFGA, DFBA, DAUA, CRBC, DBGA, CUVC, DFHA, CRVC, CKFC, CUPA, CVCA, CYKA, CUNA, CUUB, CUWA, DFCA, CUAA, DFFA, DFSD, DLUB.

Specifications

Production years since 2016
Displacement, cc 1968
Fuel system Common Rail
Power output, hp 150
Torque output, Nm 340
Cylinder block cast iron R4
Block head aluminum 16v
Cylinder bore, mm 81
Piston stroke, mm 95.5
Compression ratio 16.2
Features DOHC, intercooler
Hydraulic lifters yes
Timing drive belt
Phase regulator no
Turbocharging Mahle BM70B
Recommended engine oil 5W-30
Engine oil capacity, liter 5.7
Fuel type diesel
Euro standards EURO 5
Fuel consumption, L/100 km (for Volkswagen Tiguan 2018)
— city
— highway
— combined
7.6
5.1
6.1
Engine lifespan, km ~330 000
Weight, kg 180

The engine was installed on:

Disadvantages of the VW DBGC engine

  • On specialized forums, extraneous sounds are most often discussed, as well as vibrations in work;
  • Some more owners complain about lubricant or coolant leaks;
  • The timing drive is belt driven and requires attention, since when it breaks, the valves always bend;
  • Closer to 100,000 km, the diesel particulate filter or the EGR valve may already be clogged.

Frequently asked questions about the Volkswagen DBGC

How much power does the Volkswagen DBGC make?

The Volkswagen DBGC develops 150 hp and 340 Nm of torque.

How much oil does the Volkswagen DBGC take and which one?

Engine oil capacity: 5.7 liters. Recommended oil: 5W-30.

Does the Volkswagen DBGC have a timing belt or chain?

The Volkswagen DBGC uses a timing belt.

Is the Volkswagen DBGC turbocharged?

Yes, the Volkswagen DBGC is turbocharged (Mahle BM70B).

Does the Volkswagen DBGC need valve clearance adjustment?

No, the Volkswagen DBGC has hydraulic lifters, so the valve clearances do not need to be adjusted.

How long does the Volkswagen DBGC last?

The typical lifespan of the Volkswagen DBGC is ~330 000 km with proper maintenance.

What is the fuel consumption of the Volkswagen DBGC?

Volkswagen Tiguan 2018: city 7.6, highway 5.1, combined 6.1 L/100 km.

What cars was the Volkswagen DBGC installed on?

Skoda Kodiaq 1 (NS) since 2017; Volkswagen Tiguan 2 (AD) since 2016.

What are the common problems of the Volkswagen DBGC?

On specialized forums, extraneous sounds are most often discussed, as well as vibrations in work. Some more owners complain about lubricant or coolant leaks. All known problems.

What engines are related to the Volkswagen DBGC?

2.0 TDI EA288 family: CRLB, CRMB, DFGA, DFBA, DAUA, CRBC, DBGA, CUVC, DFHA, CRVC, CKFC, CUPA, CVCA, CYKA, CUNA, CUUB, CUWA, DFCA, CUAA, DFFA, DFSD, DLUB.

El Guardiola
Author
El Guardiola

Doctor of Technical Sciences, former engineer at the Volkswagen plant in Chattanooga, Tennessee (10 years of experience), holder of certificates and patents for inventions, author of a training manual for employees of the Volkswagen Group of America.
I consider the internal combustion engine to be the greatest technological achievement and I want to provide information about them to a wide range of car owners.
