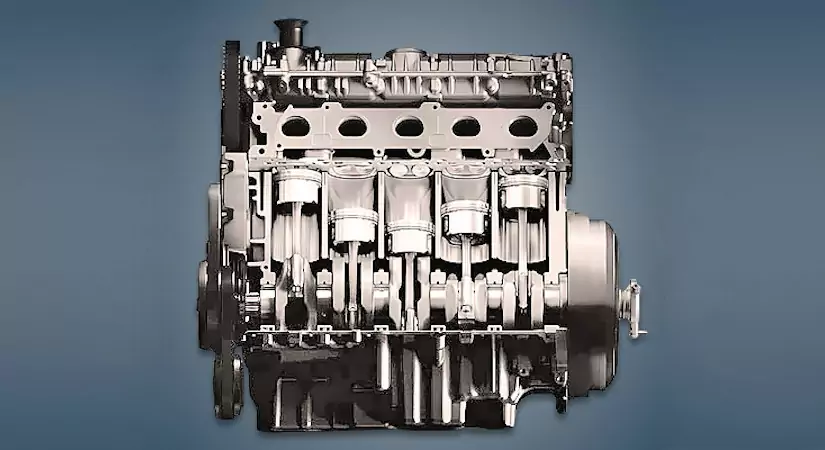

The 2.5-liter Ford HUBA turbo engine was produced at a plant in Sweden from 2007 to 2010 and was installed on all modifications of the fourth generation Mondeo, but only before restyling. This power unit is essentially similar to the Volvo engine under the B5254T3 index.
Duratec ST/RS family:
2.0 L – ALDA, HMDA;
2.5 L – HUBA, HUWA, HYDA, HYDB, JZDA.
Specifications
| Production years | 2007-2010 |
| Displacement, cc | 2522 |
| Fuel system | injector |
| Power output, hp | 220 |
| Torque output, Nm | 320 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 9.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | Dual CVVT |
| Turbocharging | KKK K04 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.8 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Ford Mondeo 2008) — city — highway — combined |
13.6 6.8 9.3 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 175 |
The engine was installed on:
- Ford Mondeo Mk4 in 2007 – 2010.
Disadvantages of the HUBA engine
- Most of the complaints on specialized forums are related to the phase control system;
- In second place is oil consumption and usually due to clogged crankcase ventilation;
- Also, owners often encounter leaks in the front camshaft oil seals;
- The timing belt does not always run the required 120,000 km, and when it breaks, the valve bends;
- After 100,000 km, a pump, fuel pump or turbine may already require attention.
Frequently asked questions about the Ford HUBA
How much power does the Ford HUBA make?
The Ford HUBA develops 220 hp and 320 Nm of torque.
How much oil does the Ford HUBA take and which one?
Engine oil capacity: 5.8 liters. Recommended oil: 5W-30.
Does the Ford HUBA have a timing belt or chain?
The Ford HUBA uses a timing belt.
Is the Ford HUBA turbocharged?
Yes, the Ford HUBA is turbocharged (KKK K04).
Does the Ford HUBA need valve clearance adjustment?
No, the Ford HUBA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford HUBA last?
The typical lifespan of the Ford HUBA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Ford HUBA?
Ford Mondeo 2008: city 13.6, highway 6.8, combined 9.3 L/100 km.
What cars was the Ford HUBA installed on?
Ford Mondeo Mk4 in 2007 - 2010.
What are the common problems of the Ford HUBA?
Most of the complaints on specialized forums are related to the phase control system. In second place is oil consumption and usually due to clogged crankcase ventilation. All known problems.
