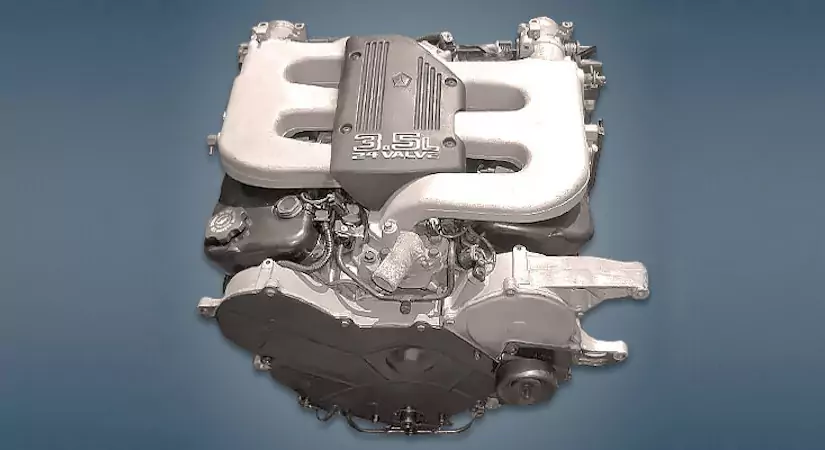

The Chrysler EGE 3.5-liter V6 petrol engine was produced by the company from 1992 to 1997 and was installed in many models on the LH platform, such as the Concorde, LHS, Intrepid and Vision. Only this unit had a cast-iron block, all subsequent motors in the series came with aluminum.
LH family: EGW, EGE, EGG, EGF, EGN, EGS, EGQ, EER.
Specifications
| Production years | 1992-1997 |
| Displacement, cc | 3518 |
| Fuel system | injector |
| Power output, hp | 215 |
| Torque output, Nm | 300 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 96 |
| Piston stroke, mm | 81 |
| Compression ratio | 10.4 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.3 |
| Fuel type | petrol |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Chrysler Concorde 1996) — city — highway — combined |
13.0 9.0 10.8 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 180 |
The engine was installed on:
- Chrysler Concorde 1 in 1992 – 1997;
- Chrysler LHS 1 in 1993 – 1997;
- Chrysler New Yorker 14 in 1993 – 1997;
- Dodge Intrepid 1 in 1992 – 1997;
- Eagle Vision 1 (LH) in 1992 – 1997;
- Plymouth Prowler 1 in 1997.
Disadvantages of the EGE engine
- The main problem with this motor is rapid slagging due to overheating. This leads to oil starvation and often results in loose bearings;
- In second place here is a loose closing of the exhaust valves due to soot;
- Throttle valves are also dirty here, which leads to floating speed;
- Antifreeze leaks regularly from the heater tube and from under the pump gasket.
Frequently asked questions about the Chrysler EGE
How much power does the Chrysler EGE make?
The Chrysler EGE develops 215 hp and 300 Nm of torque.
How much oil does the Chrysler EGE take and which one?
Engine oil capacity: 5.3 liters. Recommended oil: 5W-30.
Does the Chrysler EGE have a timing belt or chain?
The Chrysler EGE uses a timing belt.
Is the Chrysler EGE turbocharged?
No, the Chrysler EGE is naturally aspirated.
Does the Chrysler EGE need valve clearance adjustment?
No, the Chrysler EGE has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Chrysler EGE last?
The typical lifespan of the Chrysler EGE is ~300 000 km with proper maintenance.
What is the fuel consumption of the Chrysler EGE?
Chrysler Concorde 1996: city 13.0, highway 9.0, combined 10.8 L/100 km.
What cars was the Chrysler EGE installed on?
Chrysler Concorde 1 in 1992 - 1997; Chrysler LHS 1 in 1993 - 1997; Chrysler New Yorker 14 in 1993 - 1997; Dodge Intrepid 1 in 1992 - 1997; Eagle Vision 1 (LH) in 1992 - 1997; Plymouth Prowler 1 in 1997.
What are the common problems of the Chrysler EGE?
The main problem with this motor is rapid slagging due to overheating. This leads to oil starvation and often results in loose bearings. In second place here is a loose closing of the exhaust valves due to soot. All known problems.
