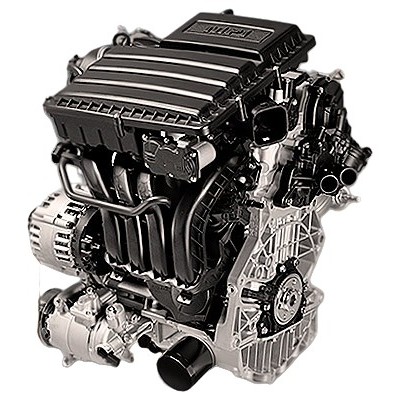

The 1.6-liter four-cylinder Volkswagen DWYA has been produced since 2020 and is installed on the Seat Arona, Seat Ibiza, Seat Leon, Skoda Fabia and other models of the group. This naturally aspirated EA211 engine has port injection and a timing belt and produces 110 hp and 152 Nm.
1.6 MPI EA211 family: CWVB, CWVA, DWYA, DWYB.
Specifications
| Production years | since 2020 |
| Displacement, cc | 1598 |
| Fuel system | distributed injection |
| Power output, hp | 110 |
| Torque output, Nm | 152 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 76.5 |
| Piston stroke, mm | 86.9 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at the intake |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Skoda Karoq 2022) — city — highway — combined |
9.3 5.8 7.1 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 99 |
The engine was installed on:
- Seat Arona 1 (KJ) since 2021;
- Seat Ibiza 5 (6F) since 2021;
- Seat Leon 4 (KL) since 2020;
- Skoda Fabia 4 (PJ) since 2021;
- Skoda Kamiq 1 (NW) since 2021;
- Skoda Karoq 1 (NU) since 2021;
- Skoda Octavia 4 (NX) since 2020;
- Skoda Scala 1 (NW) since 2021;
- Volkswagen Caddy 5 (SB) since 2021;
- Volkswagen Golf 8 (CD) since 2020;
- Volkswagen Polo 6 (AW) since 2020;
- Volkswagen Taigun 1 (CW) since 2021;
- Volkswagen Taos 1 (CP) since 2021.
Disadvantages of the Volkswagen DWYA engine
- A simple naturally aspirated engine that lasts up to 300,000 km with proper care;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km;
- Watch the timing belt: if it breaks, the valves usually bend.
Frequently asked questions about the Volkswagen DWYA
How much power does the Volkswagen DWYA make?
The Volkswagen DWYA develops 110 hp and 152 Nm of torque.
How much oil does the Volkswagen DWYA take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DWYA have a timing belt or chain?
The Volkswagen DWYA uses a timing belt.
Is the Volkswagen DWYA turbocharged?
No, the Volkswagen DWYA is naturally aspirated.
Does the Volkswagen DWYA need valve clearance adjustment?
No, the Volkswagen DWYA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DWYA last?
The typical lifespan of the Volkswagen DWYA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DWYA?
Skoda Karoq 2022: city 9.3, highway 5.8, combined 7.1 L/100 km.
What cars was the Volkswagen DWYA installed on?
Seat Arona 1 (KJ) since 2021; Seat Ibiza 5 (6F) since 2021; Seat Leon 4 (KL) since 2020; Skoda Fabia 4 (PJ) since 2021; Skoda Kamiq 1 (NW) since 2021; Skoda Karoq 1 (NU) since 2021 and 7 more (see the full list above).
What are the common problems of the Volkswagen DWYA?
A simple naturally aspirated engine that lasts up to 300,000 km with proper care. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
