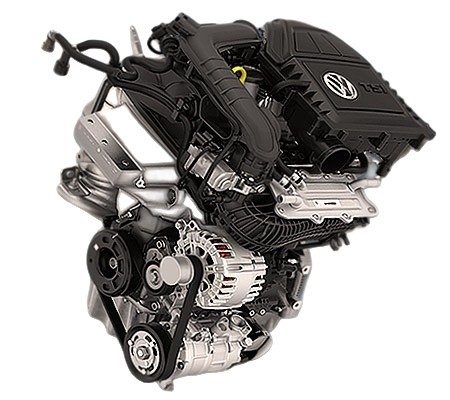

The 1.0-liter three-cylinder turbo Volkswagen CHZC was produced from 2014 to 2018 and was installed on the Seat Ibiza, Seat Toledo, Skoda Fabia, Skoda Rapid and other models of the group. This EA211 engine has direct injection, a Borgwarner B01G turbocharger and a timing belt and produces 110 hp and 200 Nm.
1.0 TSI EA211 family: CHZB, CHZD, CHZE, CHZJ, DKLD, CHZA, CHZC, CHZG, CHZK, CHZL, DKLA, DKLB, DKLC, DKRA, DKRB, DKRC, DKRD, DKRE, DKRF, CJZD, CYVA, CYVC, DLAA, DLAB, DLAC, DUSA, DUSB.
Specifications
| Production years | 2014-2018 |
| Displacement, cc | 999 |
| Fuel system | direct injection |
| Power output, hp | 110 |
| Torque output, Nm | 200 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 76.4 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | Borgwarner B01G |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for VW Golf 1.0 TSI BlueMotion 2017) — city — highway — combined |
6.1 4.3 5.0 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 91 |
The engine was installed on:
- Seat Ibiza 4 (6J) in 2015 – 2017;
- Seat Toledo 4 (KG) in 2017 – 2018;
- Skoda Fabia 3 (NJ) in 2017 – 2018;
- Skoda Rapid 1 (NH) in 2017 – 2018;
- Volkswagen Golf 7 (5G) in 2016 – 2018;
- Volkswagen Golf Sportsvan 1 (AM) in 2017 – 2018;
- Volkswagen Polo 5 (6R) in 2014 – 2017.
Disadvantages of the Volkswagen CHZC engine
- A durable turbo engine, but only with proper maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- Like all direct-injection engines, it is prone to carbon deposits on the intake valves;
- The timing belt is replaced every 240,000 km, but if it breaks earlier the valves bend;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Volkswagen CHZC
How much power does the Volkswagen CHZC make?
The Volkswagen CHZC develops 110 hp and 200 Nm of torque.
How much oil does the Volkswagen CHZC take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen CHZC have a timing belt or chain?
The Volkswagen CHZC uses a timing belt.
Is the Volkswagen CHZC turbocharged?
Yes, the Volkswagen CHZC is turbocharged (Borgwarner B01G).
Does the Volkswagen CHZC need valve clearance adjustment?
No, the Volkswagen CHZC has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen CHZC last?
The typical lifespan of the Volkswagen CHZC is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen CHZC?
VW Golf 1.0 TSI BlueMotion 2017: city 6.1, highway 4.3, combined 5.0 L/100 km.
What cars was the Volkswagen CHZC installed on?
Seat Ibiza 4 (6J) in 2015 - 2017; Seat Toledo 4 (KG) in 2017 - 2018; Skoda Fabia 3 (NJ) in 2017 - 2018; Skoda Rapid 1 (NH) in 2017 - 2018; Volkswagen Golf 7 (5G) in 2016 - 2018; Volkswagen Golf Sportsvan 1 (AM) in 2017 - 2018 and 1 more (see the full list above).
What are the common problems of the Volkswagen CHZC?
A durable turbo engine, but only with proper maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
