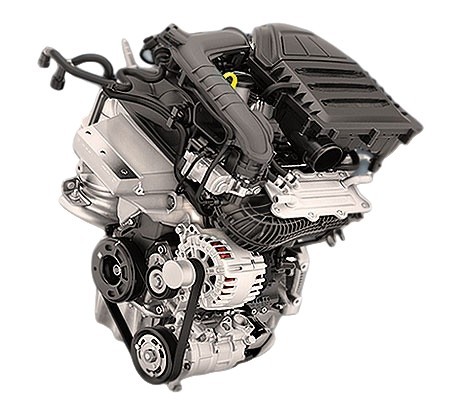

The 1.0-liter three-cylinder turbo Volkswagen DKLC was produced from 2018 to 2019 and was installed on the Volkswagen Up. This EA211 engine has direct injection, a Borgwarner B01G turbocharger and a timing belt and produces 90 hp and 160 Nm. This version is fitted with a petrol particulate filter (GPF).
1.0 TSI EA211 family: CHZB, CHZD, CHZE, CHZJ, DKLD, CHZA, CHZC, CHZG, CHZK, CHZL, DKLA, DKLB, DKLC, DKRA, DKRB, DKRC, DKRD, DKRE, DKRF, CJZD, CYVA, CYVC, DLAA, DLAB, DLAC, DUSA, DUSB.
Specifications
| Production years | 2018-2019 |
| Displacement, cc | 999 |
| Fuel system | direct injection |
| Power output, hp | 90 |
| Torque output, Nm | 160 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 76.4 |
| Compression ratio | 10.5 |
| Features | DOHC, GPF |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at intake and exhaust |
| Turbocharging | Borgwarner B01G |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6d-TEMP |
| Fuel consumption, L/100 km (for Volkswagen Up 1.0 TSI 2019) — city — highway — combined |
5.9 4.0 4.7 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 91 |
The engine was installed on:
- Volkswagen Up 1 (AA) in 2018 – 2019.
Disadvantages of the Volkswagen DKLC engine
- A durable turbo engine, but only with proper maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- Like all direct-injection engines, it is prone to carbon deposits on the intake valves;
- The timing belt is replaced every 240,000 km, but if it breaks earlier the valves bend;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Volkswagen DKLC
How much power does the Volkswagen DKLC make?
The Volkswagen DKLC develops 90 hp and 160 Nm of torque.
How much oil does the Volkswagen DKLC take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DKLC have a timing belt or chain?
The Volkswagen DKLC uses a timing belt.
Is the Volkswagen DKLC turbocharged?
Yes, the Volkswagen DKLC is turbocharged (Borgwarner B01G).
Does the Volkswagen DKLC need valve clearance adjustment?
No, the Volkswagen DKLC has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DKLC last?
The typical lifespan of the Volkswagen DKLC is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DKLC?
Volkswagen Up 1.0 TSI 2019: city 5.9, highway 4.0, combined 4.7 L/100 km.
What cars was the Volkswagen DKLC installed on?
Volkswagen Up 1 (AA) in 2018 - 2019.
What are the common problems of the Volkswagen DKLC?
A durable turbo engine, but only with proper maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
