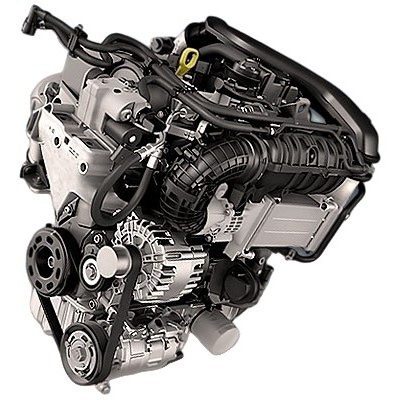

The 1.5-liter four-cylinder turbo Volkswagen DHFA was produced from 2019 to 2023 and was installed on the Audi A3, Seat Leon, Skoda Octavia, Volkswagen Caddy and other models of the group. This EA211 engine has direct injection, a Garrett MGT1241VZ turbocharger and a timing belt and produces 131 hp and 200 Nm. It is designed to run on natural gas (CNG) as well as petrol.
1.5 TGI EA211 family: DHFA.
Specifications
| Production years | 2019-2023 |
| Displacement, cc | 1498 |
| Fuel system | direct injection |
| Power output, hp | 131 |
| Torque output, Nm | 200 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 85.9 |
| Compression ratio | 12.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at intake and exhaust |
| Turbocharging | Garrett MGT1241VZ |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | CNG / petrol |
| Euro standards | EURO 6d |
| Fuel consumption, L/100 km (for Seat Leon 2022) — city — highway — combined |
6.4 4.1 4.9 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 117 |
The engine was installed on:
- Audi A3 3 (8V) in 2019 – 2020, A3 4 (8Y) in 2020 – 2023;
- Seat Leon 3 (5F) in 2019 – 2020, Leon 4 (KL) in 2021 – 2023;
- Skoda Octavia 3 (5E) in 2019 – 2020, Octavia 4 (NX) in 2020 – 2022;
- Volkswagen Caddy 5 (SB) in 2022 – 2023;
- Volkswagen Golf 7 (5G) in 2019 – 2020, Golf 8 (CD) in 2020 – 2022.
Disadvantages of the Volkswagen DHFA engine
- This engine is designed for natural gas (CNG) and is best run on it; on petrol use 98-octane fuel to avoid detonation;
- The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km;
- Watch the timing belt: if it breaks, the valves usually bend;
- The engine is demanding on oil quality and regular maintenance;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km.
Frequently asked questions about the Volkswagen DHFA
How much power does the Volkswagen DHFA make?
The Volkswagen DHFA develops 131 hp and 200 Nm of torque.
How much oil does the Volkswagen DHFA take and which one?
Engine oil capacity: 4.3 liters. Recommended oil: 0W-20.
Does the Volkswagen DHFA have a timing belt or chain?
The Volkswagen DHFA uses a timing belt.
Is the Volkswagen DHFA turbocharged?
Yes, the Volkswagen DHFA is turbocharged (Garrett MGT1241VZ).
Does the Volkswagen DHFA need valve clearance adjustment?
No, the Volkswagen DHFA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DHFA last?
The typical lifespan of the Volkswagen DHFA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DHFA?
Seat Leon 2022: city 6.4, highway 4.1, combined 4.9 L/100 km.
What cars was the Volkswagen DHFA installed on?
Audi A3 3 (8V) in 2019 - 2020, A3 4 (8Y) in 2020 - 2023; Seat Leon 3 (5F) in 2019 - 2020, Leon 4 (KL) in 2021 - 2023; Skoda Octavia 3 (5E) in 2019 - 2020, Octavia 4 (NX) in 2020 - 2022; Volkswagen Caddy 5 (SB) in 2022 - 2023; Volkswagen Golf 7 (5G) in 2019 - 2020, Golf 8 (CD) in 2020 - 2022.
What are the common problems of the Volkswagen DHFA?
This engine is designed for natural gas (CNG) and is best run on it; on petrol use 98-octane fuel to avoid detonation. The turbocharger itself is durable, but its wastegate actuator can stick as early as 100,000 km. All known problems.
