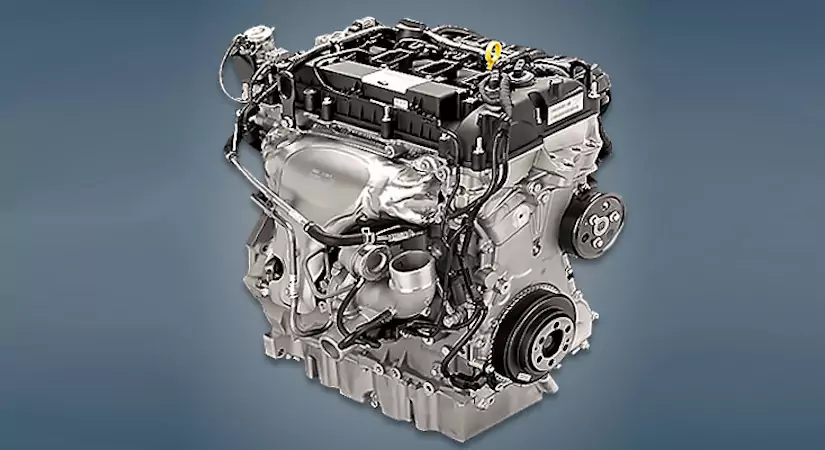

The 2.0-liter turbo engine Ford R9DA or 2.0 EcoBoost 250 was produced from 2012 to 2015 and was installed on a special charged version of the popular Focus model under the ST index. After restyling, a similar, but slightly modified motor came to replace this unit.
2.0 EcoBoost family:
1st gen – TNBB, TNWA, TPBA, TPWA;
2nd gen – TNCC, R9CB, R9CD, R9DA;
3rd gen – R9MA;
4th gen – R9MC.
Specifications
| Production years | 2012-2015 |
| Displacement, cc | 1999 |
| Fuel system | direct injection |
| Power output, hp | 249 |
| Torque output, Nm | 360 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 87.5 |
| Piston stroke, mm | 83.1 |
| Compression ratio | 9.3 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | Ti-VCT |
| Turbocharging | yes |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 5.6 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Ford Focus ST 2014) — city — highway — combined |
9.9 5.6 7.2 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 140 |
The engine was installed on:
- Ford Focus Mk3 ST in 2012 – 2015.
Disadvantages of the R9DA engine
- Charged Ford Focus are rare and there is little information on their breakdowns.
- This engine is extremely demanding on the quality of fuel and oil used.
- Therefore, the main complaints are related to the failure of the fuel system components.
Frequently asked questions about the Ford R9DA
How much power does the Ford R9DA make?
The Ford R9DA develops 249 hp and 360 Nm of torque.
How much oil does the Ford R9DA take and which one?
Engine oil capacity: 5.6 liters. Recommended oil: 5W-20.
Does the Ford R9DA have a timing belt or chain?
The Ford R9DA uses a timing chain.
Is the Ford R9DA turbocharged?
Yes, the Ford R9DA is turbocharged.
Does the Ford R9DA need valve clearance adjustment?
Yes, there are no hydraulic lifters, so the valve clearances have to be checked and adjusted periodically.
How long does the Ford R9DA last?
The typical lifespan of the Ford R9DA is ~200 000 km with proper maintenance.
What is the fuel consumption of the Ford R9DA?
Ford Focus ST 2014: city 9.9, highway 5.6, combined 7.2 L/100 km.
What cars was the Ford R9DA installed on?
Ford Focus Mk3 ST in 2012 - 2015.
What are the common problems of the Ford R9DA?
Charged Ford Focus are rare and there is little information on their breakdowns. This engine is extremely demanding on the quality of fuel and oil used. All known problems.
