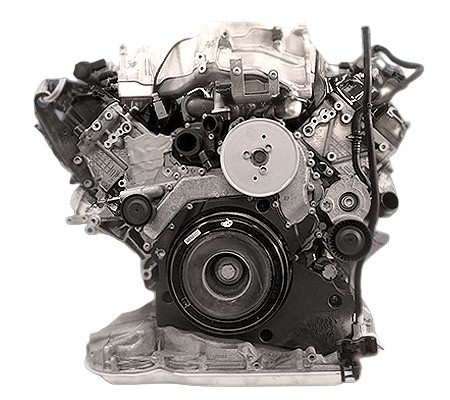

The 3.0-liter V6 turbodiesel Volkswagen DPYC has been produced since 2020 and is installed on the Volkswagen Touareg. This EA897 diesel with Common Rail injection and a chain-driven timing system produces 231 hp and 500 Nm.
EA897 family: CJMA, CDUC, CDUD, CRCA, CRTC, CVMD, DCPC, DDXC, DDXE, DHXA, DMKC, DPYC.
Specifications
| Production years | since 2020 |
| Displacement, cc | 2967 |
| Fuel system | Common Rail |
| Power output, hp | 231 |
| Torque output, Nm | 500 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91.4 |
| Compression ratio | 16.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GTD2060VZK |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 7.0 |
| Fuel type | diesel |
| Euro standards | EURO 6d-ISC-FCM |
| Fuel consumption, L/100 km (for VW Touareg 2022) — city — highway — combined |
7.7 5.9 6.6 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 190 |
The engine was installed on:
- Volkswagen Touareg 3 (CR) since 2020.
Disadvantages of the Volkswagen DPYC engine
- The fuel system with piezo injectors is demanding on diesel quality;
- The updated timing chain drive lasts more than 200,000 km;
- Most complaints concern fouling of the intake, particulate filter and EGR valve.
Frequently asked questions about the Volkswagen DPYC
How much power does the Volkswagen DPYC make?
The Volkswagen DPYC develops 231 hp and 500 Nm of torque.
How much oil does the Volkswagen DPYC take and which one?
Engine oil capacity: 7.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DPYC have a timing belt or chain?
The Volkswagen DPYC uses a timing chain.
Is the Volkswagen DPYC turbocharged?
Yes, the Volkswagen DPYC is turbocharged (Garrett GTD2060VZK).
Does the Volkswagen DPYC need valve clearance adjustment?
No, the Volkswagen DPYC has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DPYC last?
The typical lifespan of the Volkswagen DPYC is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DPYC?
VW Touareg 2022: city 7.7, highway 5.9, combined 6.6 L/100 km.
What cars was the Volkswagen DPYC installed on?
Volkswagen Touareg 3 (CR) since 2020.
What are the common problems of the Volkswagen DPYC?
The fuel system with piezo injectors is demanding on diesel quality. The updated timing chain drive lasts more than 200,000 km. All known problems.
