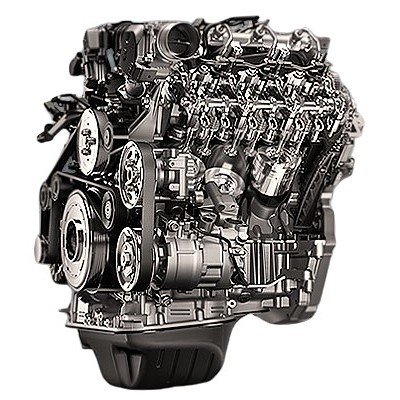

The 3.0-liter V6 turbodiesel Volkswagen DDXE has been produced since 2018 and is installed on the Volkswagen Amarok. This EA897 diesel with Common Rail injection and a chain-driven timing system produces 258 hp and 580 Nm.
EA897 family: CJMA, CDUC, CDUD, CRCA, CRTC, CVMD, DCPC, DDXC, DDXE, DHXA, DMKC, DPYC.
Specifications
| Production years | since 2018 |
| Displacement, cc | 2967 |
| Fuel system | Common Rail |
| Power output, hp | 258 |
| Torque output, Nm | 580 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91.4 |
| Compression ratio | 17.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GTD2060VZ |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.0 |
| Fuel type | diesel |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for VW Amarok 2019) — city — highway — combined |
10.0 8.2 8.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 190 |
The engine was installed on:
- Volkswagen Amarok 1 (2H) since 2018.
Disadvantages of the Volkswagen DDXE engine
- The fuel system with piezo injectors is demanding on diesel quality;
- The updated timing chain drive lasts more than 200,000 km;
- Most complaints concern fouling of the intake, particulate filter and EGR valve.
Frequently asked questions about the Volkswagen DDXE
How much power does the Volkswagen DDXE make?
The Volkswagen DDXE develops 258 hp and 580 Nm of torque.
How much oil does the Volkswagen DDXE take and which one?
Engine oil capacity: 8.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DDXE have a timing belt or chain?
The Volkswagen DDXE uses a timing chain.
Is the Volkswagen DDXE turbocharged?
Yes, the Volkswagen DDXE is turbocharged (Garrett GTD2060VZ).
Does the Volkswagen DDXE need valve clearance adjustment?
No, the Volkswagen DDXE has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DDXE last?
The typical lifespan of the Volkswagen DDXE is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DDXE?
VW Amarok 2019: city 10.0, highway 8.2, combined 8.9 L/100 km.
What cars was the Volkswagen DDXE installed on?
Volkswagen Amarok 1 (2H) since 2018.
What are the common problems of the Volkswagen DDXE?
The fuel system with piezo injectors is demanding on diesel quality. The updated timing chain drive lasts more than 200,000 km. All known problems.
