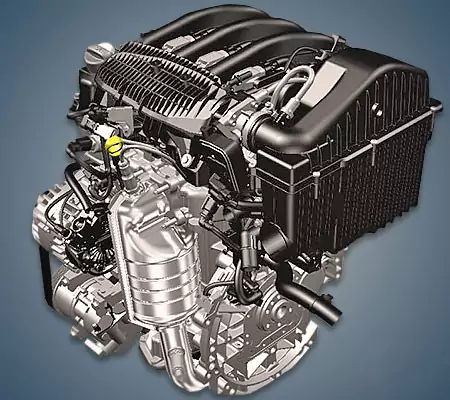

Engine Peugeot EB2M

The 1.2-liter Peugeot EB2M or HMY petrol engine has been assembled by the company since 2012 and is installed on budget models, such as the 301 and the similar Citroen C-Elysee 1.2 VTi. This power unit is essentially a simplified version of the EB2 motor without a phase regulator.

Engines of the EB family: EB0, EB2, EB2M, EB2DT, EB2DTS, EB2ADTX.

Specifications

Production years since 2012
Displacement, cc 1199
Fuel system distributed injection
Power output, hp 72
Torque output, Nm 110
Cylinder block aluminum R3
Block head aluminum 12v
Cylinder bore, mm 75
Piston stroke, mm 90.5
Compression ratio 10.5
Features balancers
Hydraulic lifters no
Timing drive belt
Phase regulator no
Turbocharging no
Recommended engine oil 0W-30
Engine oil capacity, liter 3.25
Fuel type petrol
Euro standards EURO 5
Fuel consumption, L/100 km (for Peugeot 301 2015)
— city
— highway
— combined
7.0
4.3
5.3
Engine lifespan, km ~300 000
Weight, kg 73.5

The engine was installed on:

  • Citroen C-Elysee I (R31) since 2012;
  • Peugeot 301 I (M33) since 2012.

Disadvantages of the Peugeot EB2M engine

  • For engines of the first years, a recall campaign was carried out in connection with the axial play of the crankshaft.
  • Also, on engines with a mileage of over 100 thousand km, oil consumption is often.
  • But the most troublesome thing is the timing belt located in the oil bath.
  • It wears out pretty quickly, and its wear products clog the oil channels.
  • That is why the oil pump in this power unit does not last a particularly long time.
