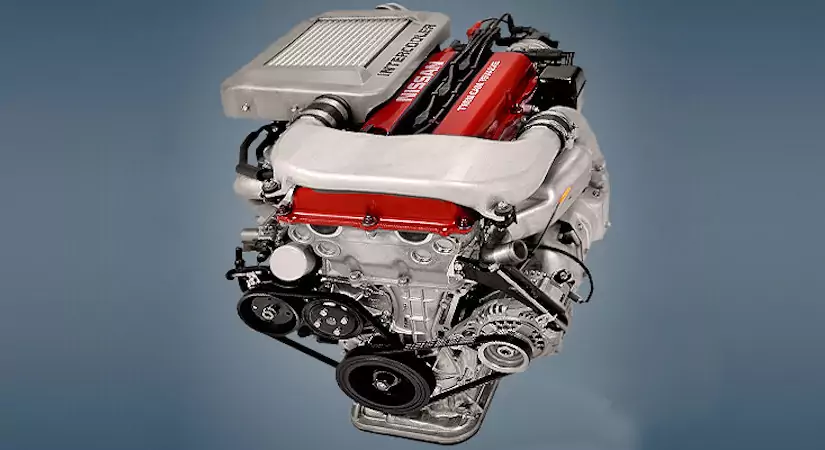

Engine Nissan SR20DET

The 2.0-liter Nissan SR20DET engine was produced from 1989 to 2001 and was installed both in the concern’s sports cars and in charged versions of civilian models. Modifications of this motor are distinguished by different colors of its valve cover: Red, Silver or Black.

The SR family also includes internal combustion engines: SR16VE, SR18DE, SR20DE, SR20VE and SR20VET.

The engine was installed on:

  • Nissan 200SX S14 in 1993 – 1999;
  • Nissan Avenir 1 (W10) in 1995 – 1997; Avenir 2 (W11) in 1998 – 2001;
  • Nissan Bluebird U12 in 1989 – 1990; Bluebird U13 in 1991 – 1995;
  • Nissan Liberty M12 in 1998 – 2000;
  • Nissan Pulsar N14 in 1990 – 1995;
  • Nissan R’nessa N30 in 1997 – 2001;
  • Nissan Silvia S13 in 1989 – 1994; Silvia S14 in 1993 – 2000; Silvia S15 in 1999 – 2002;
  • Nissan Sunny N14 in 1990 – 1995.

Specifications

Production years 1989-2001
Displacement, cc 1998
Fuel system distributed injection
Power output, hp 200 – 250
Torque output, Nm 270 – 300
Cylinder block aluminum R4
Block head aluminum 16v
Cylinder bore, mm 86
Piston stroke, mm 86
Compression ratio 8.3 – 8.5
Features no
Hydraulic lifters yes
Timing drive chain
Phase regulator at the inlet
Turbocharging Garrett T25 or T28
Recommended engine oil 5W-30
Engine oil capacity, liter 3.7
Fuel type 95
Euro standards EURO 2/3/4
Fuel consumption, L/100 km (for Nissan Silvia 2000)
— city
— highway
— combined
14.7
8.4
11.2
Engine lifespan, km ~300 000
Weight, kg 180

Disadvantages of the SR20DET engine

  • If you do not save on oil, this motor quietly drives more than 300 – 350 thousand km;
  • Cheap oil clogs the channels, reducing the resource, especially for the turbine;
  • By about 200 – 250 thousand km, the timing chain often stretches and starts to rattle;
  • The reason for floating speed should be sought in the idle speed controller or mass air flow sensor;
  • Strong vibrations indicate wear on the rubber-metal engine mounts;
  • Leaks from under the crankshaft oil seal and oil pressure sensor occur regularly;
  • With intensive use, they may not withstand the rocker and then the engine is over.
