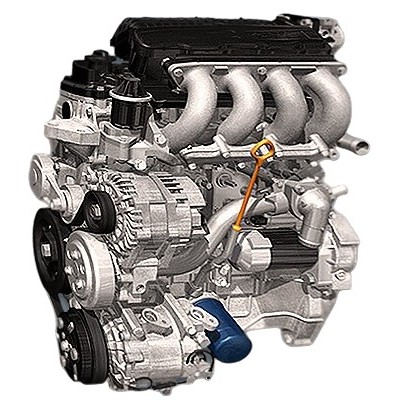

The 1.3-liter Honda L13Z was produced in Japan from 2007 to 2017 for the second-generation Jazz, the City, the Asian Brio and European versions of the Civic. It is a 100-hp L-series engine with i-VTEC.
L-series family: L13A, L13B, L15B, L15C, L15Z, L15A, L12B, L12A, L13Z, LEA, LEB, LEC.
Specifications
| Production years | 2008-2017 |
| Displacement, cc | 1339 |
| Fuel system | distributed injection |
| Power output, hp | 100 |
| Torque output, Nm | 127 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 73 |
| Piston stroke, mm | 80 |
| Compression ratio | 10.5 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | i-VTEC |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.6 |
| Fuel type | petrol |
| Fuel consumption, L/100 km (for Honda Jazz 2010) — city — highway — combined |
6.5 4.7 5.4 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 101 |
The engine was installed on:
- Honda Brio 1 (DD) in 2011 – 2014;
- Honda City 5 (GM) in 2008 – 2014;
- Honda Civic 8 (FD) in 2008 – 2011, Civic 9 (FB) in 2012 – 2017;
- Honda Jazz 2 (GG) in 2008 – 2015.
Disadvantages of the Honda L13Z engine
- A reliable engine with a service life of about 300,000 km that troubles owners only with minor issues;
- Oil leaks are common, especially through the camshaft plug;
- Unstable idle is often caused by air leaks at the throttle body;
- Brittle wiring and a sticking EGR valve are known weak points;
- There are no hydraulic lifters, so the valve clearances must be adjusted every 50,000 km.
Frequently asked questions about the Honda L13Z
How much power does the Honda L13Z make?
The Honda L13Z develops 100 hp and 127 Nm of torque.
How much oil does the Honda L13Z take and which one?
Engine oil capacity: 3.6 liters. Recommended oil: 5W-30.
Does the Honda L13Z have a timing belt or chain?
The Honda L13Z uses a timing chain.
Is the Honda L13Z turbocharged?
No, the Honda L13Z is naturally aspirated.
Does the Honda L13Z need valve clearance adjustment?
Yes, there are no hydraulic lifters, so the valve clearances have to be checked and adjusted periodically.
How long does the Honda L13Z last?
The typical lifespan of the Honda L13Z is ~300 000 km with proper maintenance.
What is the fuel consumption of the Honda L13Z?
Honda Jazz 2010: city 6.5, highway 4.7, combined 5.4 L/100 km.
What cars was the Honda L13Z installed on?
Honda Brio 1 (DD) in 2011 - 2014; Honda City 5 (GM) in 2008 - 2014; Honda Civic 8 (FD) in 2008 - 2011, Civic 9 (FB) in 2012 - 2017; Honda Jazz 2 (GG) in 2008 - 2015.
What are the common problems of the Honda L13Z?
A reliable engine with a service life of about 300,000 km that troubles owners only with minor issues. Oil leaks are common, especially through the camshaft plug. All known problems.
