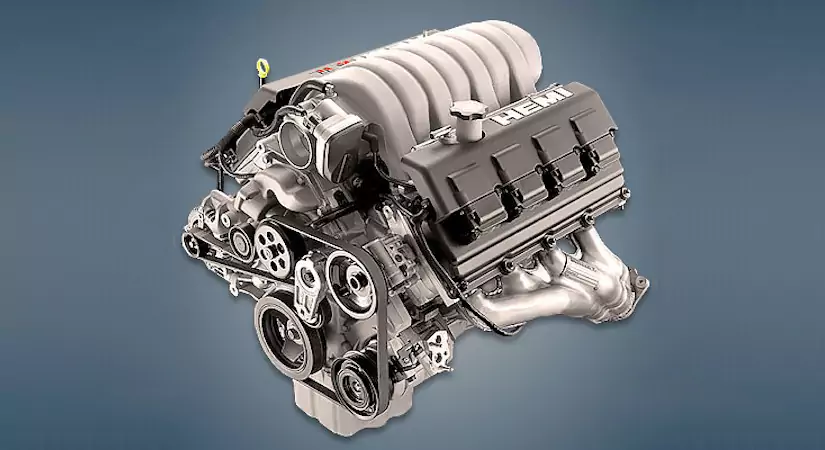

The Chrysler ESF or HEMI 6.1 6.1-liter V8 engine was assembled in Mexico from 2005 to 2010 and installed in charged versions of the 300C, Charger, Magnum and Grand Cherokee SRT8 models. Such a unit was not equipped with either an MDS cylinder deactivation system or a VCT phase regulator.
HEMI family: EZA, EZH, ESF, ESG, EZB, ESD, ESJ.
Specifications
| Production years | 2005-2010 |
| Displacement, cc | 6059 |
| Fuel system | injector |
| Power output, hp | 425 |
| Torque output, Nm | 570 |
| Cylinder block | cast iron V8 |
| Block head | aluminum, 16v |
| Cylinder bore, mm | 103 |
| Piston stroke, mm | 90.9 |
| Compression ratio | 10.3 |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.7 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Chrysler 300C 2008) — city — highway — combined |
21.0 9.9 14.0 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | — |
| Phase regulator | VCT |
The engine was installed on:
- Chrysler 300C 1 (LX) in 2005 – 2010;
- Dodge Charger 1 (LX) in 2006 – 2010;
- Dodge Challenger 3 (LC) in 2008 – 2010;
- Dodge Magnum 1 (LE) in 2005 – 2008;
- Jeep Grand Cherokee 3 (WK) in 2005 – 2010.
Disadvantages of the ESF engine
- The engines of this series do not cause many problems, but the fuel consumption is huge;
- There is also no MDS system, which makes this power unit even more reliable;
- For normal operation of the motor and especially hydraulic lifters, 5W-20 oil is needed;
- Often the exhaust manifold leads, and sometimes the studs of its fastening even burst;
- Under the hood, strange sounds are often heard, popularly called Hemi ticking.
Frequently asked questions about the Chrysler ESF
How much power does the Chrysler ESF make?
The Chrysler ESF develops 425 hp and 570 Nm of torque.
How much oil does the Chrysler ESF take and which one?
Engine oil capacity: 6.7 liters. Recommended oil: 5W-30.
Does the Chrysler ESF have a timing belt or chain?
The Chrysler ESF uses a timing chain.
Is the Chrysler ESF turbocharged?
No, the Chrysler ESF is naturally aspirated.
Does the Chrysler ESF need valve clearance adjustment?
No, the Chrysler ESF has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Chrysler ESF last?
The typical lifespan of the Chrysler ESF is ~350 000 km with proper maintenance.
What is the fuel consumption of the Chrysler ESF?
Chrysler 300C 2008: city 21.0, highway 9.9, combined 14.0 L/100 km.
What cars was the Chrysler ESF installed on?
Chrysler 300C 1 (LX) in 2005 - 2010; Dodge Charger 1 (LX) in 2006 - 2010; Dodge Challenger 3 (LC) in 2008 - 2010; Dodge Magnum 1 (LE) in 2005 - 2008; Jeep Grand Cherokee 3 (WK) in 2005 - 2010.
What are the common problems of the Chrysler ESF?
The engines of this series do not cause many problems, but the fuel consumption is huge. There is also no MDS system, which makes this power unit even more reliable. All known problems.
