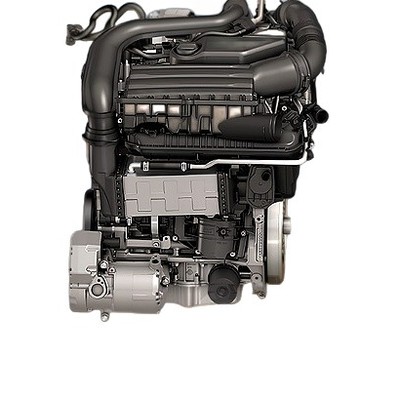

The 1.4-liter four-cylinder turbo Volkswagen DUKA was produced from 2018 to 2022 and was installed on the Volkswagen Magotan, Volkswagen Passat China, Volkswagen Tayron and Volkswagen Tiguan L. This EA211 engine has direct injection, a MHI TD025L turbocharger and a timing belt and produces 150 hp and 250 Nm. It is intended for the Chinese market. It is the combustion engine of a plug-in hybrid powertrain. Together with the electric motor, the system produces 211 hp and 400 Nm.
1.4 Hybrid EA211 family: CUKB, CXUA, CNLA, CRJA, CUKC, DGEA, DGEB, DUKA, DXJA.
Specifications
| Production years | 2018-2022 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 250 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80.0 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | MHI TD025L |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Volkswagen Tayron GTE 2021) — city — highway — combined |
3.3 3.9 3.6 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 107 |
The engine was installed on:
- Volkswagen Magotan 3 (0B) in 2019 – 2021;
- Volkswagen Passat China B8 (C4) in 2018 – 2021;
- Volkswagen Tayron 1 (0D) in 2020 – 2022;
- Volkswagen Tiguan L 2 (0T) in 2020 – 2022.
Disadvantages of the Volkswagen DUKA engine
- The hybrid powertrain as a whole is reliable; most complaints concern the DSG gearbox mechatronics rather than the engine;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- Keep an eye on cooling: the traction battery does not tolerate overheating;
- Few workshops have experience with these hybrid powertrains.
Frequently asked questions about the Volkswagen DUKA
How much power does the Volkswagen DUKA make?
The Volkswagen DUKA develops 150 hp and 250 Nm of torque.
How much oil does the Volkswagen DUKA take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen DUKA have a timing belt or chain?
The Volkswagen DUKA uses a timing belt.
Is the Volkswagen DUKA turbocharged?
Yes, the Volkswagen DUKA is turbocharged (MHI TD025L).
Does the Volkswagen DUKA need valve clearance adjustment?
No, the Volkswagen DUKA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DUKA last?
The typical lifespan of the Volkswagen DUKA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DUKA?
Volkswagen Tayron GTE 2021: city 3.3, highway 3.9, combined 3.6 L/100 km.
What cars was the Volkswagen DUKA installed on?
Volkswagen Magotan 3 (0B) in 2019 - 2021; Volkswagen Passat China B8 (C4) in 2018 - 2021; Volkswagen Tayron 1 (0D) in 2020 - 2022; Volkswagen Tiguan L 2 (0T) in 2020 - 2022.
What are the common problems of the Volkswagen DUKA?
The hybrid powertrain as a whole is reliable; most complaints concern the DSG gearbox mechatronics rather than the engine. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
