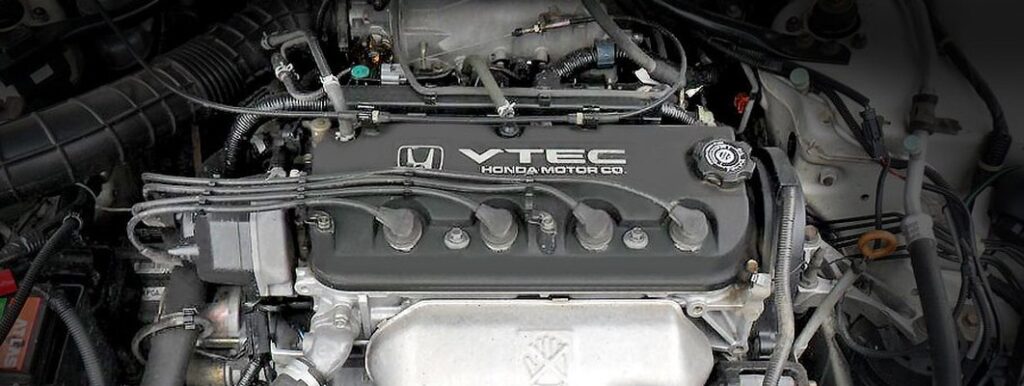

Engine Honda F18B under the hood

Engine Honda F18B

The 1.8-liter Honda F18B gasoline engine was produced by the company from 1993 to 2002 and was installed in the fifth and sixth generations of the very popular worldwide Accord model. The F18B motor is found in a single modification, however, with varying degrees of forcing.

The F18B engine is an injection version of the 1.8-liter F18 series engine that was produced by Honda. The power unit was one of the flagship in the line of Accord motors. The engine is distinguished by good parameters, simplicity, the absence of capricious electronic systems, recirculation and other things that will be used a little later to please environmental requirements.

The F-series also includes internal combustion engines: F20A, F20B, F20C, F22B and F23A.

The engine was installed on:

  • Honda Accord 5 (CD) in 1993 – 1997;
  • Honda Accord 6 (CG) in 1997 – 2002.

Specifications

Production years 1993-2002
Displacement, cc 1849
Fuel system injector
Power output, hp 135 – 140
Torque output, Nm 165 – 175
Cylinder block aluminum R4
Block head aluminum 16v
Cylinder bore, mm 85
Piston stroke, mm 81.5
Compression ratio 9.3
Features SOHC
Hydraulic lifters no
Timing drive belt
Phase regulator VTEC-E
Turbocharging no
Recommended engine oil 5W-30
Engine oil capacity, liter 3.8
Fuel type 92
Euro standards EURO 2/3
Fuel consumption, L/100 km (for Honda Accord 1995)
— city
— highway
— combined
10.4
6.3
8.1
Engine lifespan, km ~320 000
Weight, kg 135

Disadvantages of the Honda F18B engine

  • Most of all, car owners complain about lubricant and coolant leaks;
  • After 100 – 150 thousand kilometers, the oil here also begins to be spent on waste;
  • The timing belt serves no more than 100 thousand km, and when it breaks the valve usually bends;
  • Due to contamination of the idle valve and the EGR valve, the engine begins to behave erratically;
  • Valve clearances need to be adjusted every 40,000 km, there are no hydraulic lifters.

Honda F18B Engine Repair Parts List

Engine Honda F18B

Full name of the part Part code
Piston without rings Honda F18A d85.0 STD (13101-PT1-000) Teikin (Piston with pin, without piston rings) 38150 STD
Cylinder head retaining bolts HBS281
Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky (5.5x29x115) HMA1000
Exhaust valve Honda D13/15/16 5.5x25x118.8 UM 16-VX173
Valve V94096
Valve V91730
Valve V94095
Valve guide bush VAG92397
Valve guide bush VAG92398
Valve guide bush VAG96221
Inlet valve Honda F18B2 5.5x34x116 UM 16-VN428
Inlet valve 14711-PDA-E00
Exhaust valve 14721-PDA-E00
Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky (5.5x29x115) HMA1000
BELT TIMING BELT TB353
BELT TIMING BELT TB354
Timing belt included CT 799 K1
Toothed belt 112×240 Honda Contitech CT1001
Toothed belt 113×240 Honda Contitech CT 799
Toothed belt 70×160 Honda Accord 2.0-2.2 16V Contitech CT 800
Timing repair kit CT1001K1
Timing drive repair kit CT 800 K1
Guide roller 99918237
Upper gasket set 262.570
Head gasket 262.640
Sealant Dirko grey 70ml, replacement of the number with 527.290 (04.10394-9385) 036.166
Valve stem seals (130.860+130.560) (set 16 things (130.860+130.560) Black spring = exhaust, White spring = inlet) 084.300
Valve cap inlet Honda color code “white” (12210-P45-G01) Elring (Inlet 5,5 x 11/13×10 /ACM PR color code “white”) 130.560
Oil scraper cap (exhaust. 5,5 x 11/13×10 HONDA /ACM. Black spring) 130.860
Stuffing box NJ134
Stuffing box 28x42x8 012.180
Service kit for self-production of seals (paranite + metal) Reinz 16-27250-03
Solid material spacers Service-Kit (Sealing material (Format 210×300 mm) Abil 0,5 mm and 1,0 mm EWP 207 0,75 mm FW 522 (metal/soft material) 1,25 mm Silicone sealing compound Dirko S 20 ml) 447.101
Water pump 50 005 080
Water pump 50005081
Basic liners Honda F18/F20/F22, H22A 16V 93- NDC (set) MS-2213GP STD
Basic liners Honda F20A/F22B/H23A Taiho M459H-STD
Connecting rod bushings Honda Accord A20A 87- Taiho (for motors G20/G25 – two sets) R454H-STD
Connecting rod bushings (set) CB-2200GP STD
Semi-rings persistent Honda F20A/F22B/H23A Taiho T459A-STD
Semi-rings persistent TW-2213A STD
Oil filter h=103.0 Honda KS Original /10 50 013 146
Fuel filter Honda Accord 1.8i-2.2i 16V, Civic 1.5i-1.8i 16V KS 50 013 824
Cabin ventilation filter 50 013 957
Sealant Dirko grey elastic, 70ml (-50°C/+180°C/300 C (MD997110, Z2156090) (=036.166) 527.290
Sealant kit: Dirko HT + Dirko S + Curil T Elring (20 ml Curil T+ 20 ml Dirko S + 20 ml Dirko HT) 447.201
