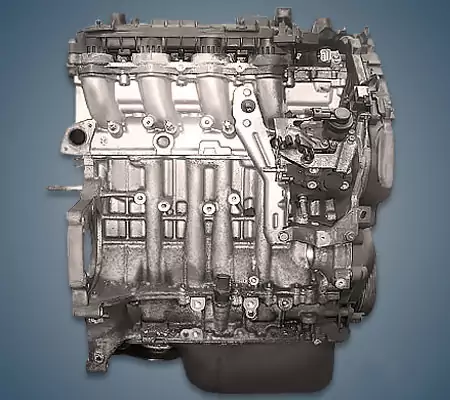

A 1.4-liter Suzuki 10JBAX or 1.6 DDiS diesel engine was produced from 2007 to 2009 and installed on the European version of the first generation SX4 crossover before its restyling. This power unit is essentially one of the varieties of the Peugeot DV6ATED4 engine.
This series also includes diesel: 10FD53.
Specifications
| Production years | 2007-2009 |
| Displacement, cc | 1560 |
| Fuel system | Common Rail |
| Power output, hp | 90 |
| Torque output, Nm | 215 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 88.3 |
| Compression ratio | 18.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain & belt |
| Phase regulator | no |
| Turbocharging | MHI TD025 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.85 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Suzuki SX4 2008) — city — highway — combined |
7.2 4.9 5.8 |
| Engine lifespan, km | ~280 000 |
| Weight, kg | 140 |
The engine was installed on:
- Suzuki SX4 1 (GY) in 2007 – 2009.
Disadvantages of the 10JBAX engine
- The main problems for the owner are caused by regular oil and antifreeze leaks.
- Also here, phases often go astray due to chain stretching between the camshafts.
- The grease coarse filter clogs quickly, which reduces the life of the turbine.
- Monitor the condition of the timing belt or prepare for a major overhaul after it breaks.
- The weak points of the engine include fire-resistant washers under the nozzles and the EGR valve.
Frequently asked questions about the Suzuki 10JBAX
How much power does the Suzuki 10JBAX make?
The Suzuki 10JBAX develops 90 hp and 215 Nm of torque.
How much oil does the Suzuki 10JBAX take and which one?
Engine oil capacity: 3.85 liters. Recommended oil: 5W-30.
Does the Suzuki 10JBAX have a timing belt or chain?
Timing drive of the Suzuki 10JBAX: chain & belt.
Is the Suzuki 10JBAX turbocharged?
Yes, the Suzuki 10JBAX is turbocharged (MHI TD025).
Does the Suzuki 10JBAX need valve clearance adjustment?
No, the Suzuki 10JBAX has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Suzuki 10JBAX last?
The typical lifespan of the Suzuki 10JBAX is ~280 000 km with proper maintenance.
What is the fuel consumption of the Suzuki 10JBAX?
Suzuki SX4 2008: city 7.2, highway 4.9, combined 5.8 L/100 km.
What cars was the Suzuki 10JBAX installed on?
Suzuki SX4 1 (GY) in 2007 - 2009.
What are the common problems of the Suzuki 10JBAX?
The main problems for the owner are caused by regular oil and antifreeze leaks. Also here, phases often go astray due to chain stretching between the camshafts. All known problems.
