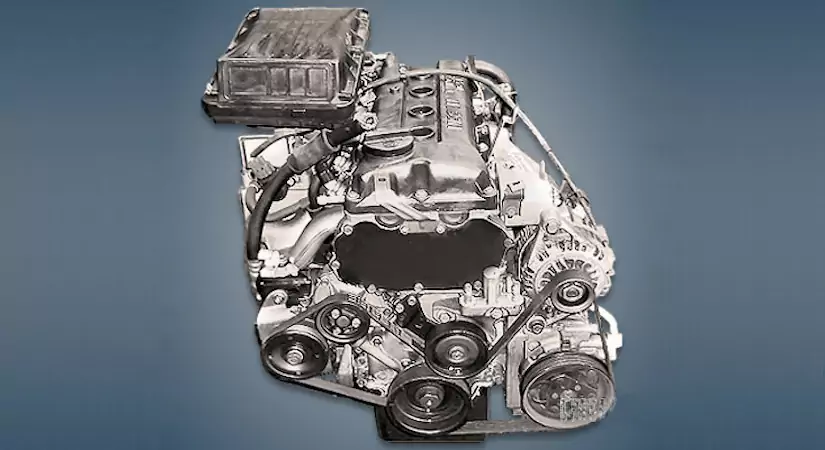

The 1.0-liter Nissan CG10DE Clean Green engine (or CG10 for short) was produced from 1992 to 2003 and was installed mainly in local compact cars such as Micra and March. In a number of markets from 2000 to 2002, a modification with direct fuel injection was offered.
CG family: CG10DE, CG13DE, CGA3DE.
Specifications
| Production years | 1992-2003 |
| Displacement, cc | 998 |
| Fuel system | distributed injection |
| Power output, hp | 55 – 60 |
| Torque output, Nm | 79 – 80 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 71 |
| Piston stroke, mm | 62 |
| Compression ratio | 9.5 – 9.8 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | two chains |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.1 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Nissan Micra 1996) — city — highway — combined |
7.1 5.3 5.8 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 90 |
The engine was installed on:
- Nissan Micra 2 (K11) in 1992 – 2003;
- Nissan March 2 (K11) in 1992 – 2003.
Disadvantages of the CG10DE engine
- The most famous problem with internal combustion engines is that their timing chains stretch and rattle;
- In second place in popularity are floating speeds due to throttle contamination;
- In third place is an unreliable thermostat, which can suddenly start acting weird;
- We also note the quickly drying gaskets and seals, which is fraught with leaks;
- The motor often troit due to moisture, which then easily seeps into the candle wells.
Frequently asked questions about the Nissan CG10DE
How much power does the Nissan CG10DE make?
The Nissan CG10DE develops 55 - 60 hp and 79 - 80 Nm of torque.
How much oil does the Nissan CG10DE take and which one?
Engine oil capacity: 3.1 liters. Recommended oil: 5W-30.
Does the Nissan CG10DE have a timing belt or chain?
Timing drive of the Nissan CG10DE: two chains.
Is the Nissan CG10DE turbocharged?
No, the Nissan CG10DE is naturally aspirated.
Does the Nissan CG10DE need valve clearance adjustment?
Yes, there are no hydraulic lifters, so the valve clearances have to be checked and adjusted periodically.
How long does the Nissan CG10DE last?
The typical lifespan of the Nissan CG10DE is ~200 000 km with proper maintenance.
What is the fuel consumption of the Nissan CG10DE?
Nissan Micra 1996: city 7.1, highway 5.3, combined 5.8 L/100 km.
What cars was the Nissan CG10DE installed on?
Nissan Micra 2 (K11) in 1992 - 2003; Nissan March 2 (K11) in 1992 - 2003.
What are the common problems of the Nissan CG10DE?
The most famous problem with internal combustion engines is that their timing chains stretch and rattle. In second place in popularity are floating speeds due to throttle contamination. All known problems.
