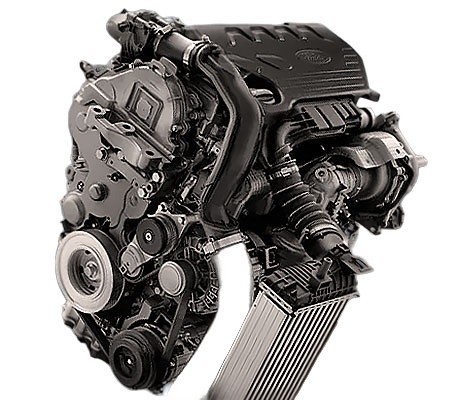

The 1.5-liter diesel Ford ZTJA was installed from 2017 to 2020 only on the facelifted second-generation EcoSport. It produces 125 hp and 300 Nm; ZTJB and ZTJC versions were made for less strict emission standards.
1.5 EcoBlue family: Z2DA, Z2GA, Z2JA, Y9DA, ZTDA, ZTGA, ZTJA.
Specifications
| Production years | 2017-2020 |
| Displacement, cc | 1499 |
| Fuel system | Common Rail |
| Power output, hp | 125 |
| Torque output, Nm | 300 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 84.8 |
| Compression ratio | 16.4 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt and chain |
| Phase regulator | no |
| Turbocharging | Garrett GTD1244VZ |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | diesel |
| Euro standards | EURO 6d |
| Fuel consumption, L/100 km (for Ford EcoSport 2019) — city — highway — combined |
4.7 4.2 4.4 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 130 |
The engine was installed on:
- Ford EcoSport 2 (B515) in 2017 – 2020.
Disadvantages of the Ford ZTJA engine
- The weak point of these PSA-designed diesels is the short chain between the camshafts: it stretches, and if this is missed, it breaks and the pistons hit the valves;
- Fitting the reinforced chain requires new camshafts, so the repair is expensive;
- The Bosch Common Rail system with piezo injectors is reliable but does not tolerate poor diesel;
- The particulate filter, EGR valve and NOx sensor cause a lot of trouble.
Frequently asked questions about the Ford ZTJA
How much power does the Ford ZTJA make?
The Ford ZTJA develops 125 hp and 300 Nm of torque.
How much oil does the Ford ZTJA take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 0W-20.
Does the Ford ZTJA have a timing belt or chain?
Timing drive of the Ford ZTJA: belt and chain.
Is the Ford ZTJA turbocharged?
Yes, the Ford ZTJA is turbocharged (Garrett GTD1244VZ).
Does the Ford ZTJA need valve clearance adjustment?
No, the Ford ZTJA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford ZTJA last?
The typical lifespan of the Ford ZTJA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Ford ZTJA?
Ford EcoSport 2019: city 4.7, highway 4.2, combined 4.4 L/100 km.
What cars was the Ford ZTJA installed on?
Ford EcoSport 2 (B515) in 2017 - 2020.
What are the common problems of the Ford ZTJA?
The weak point of these PSA-designed diesels is the short chain between the camshafts: it stretches, and if this is missed, it breaks and the pistons hit the valves. Fitting the reinforced chain requires new camshafts, so the repair is expensive. All known problems.
