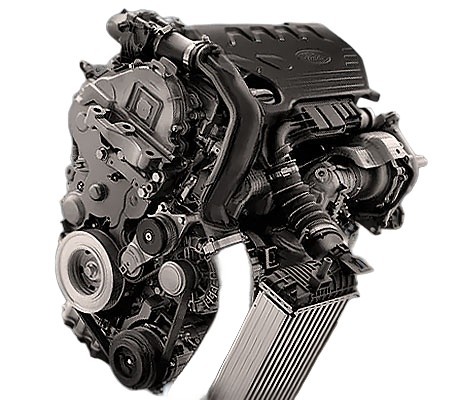

The 1.5-liter diesel Ford ZTGA (1.5 EcoBlue) was installed from 2018 to 2022 on the facelifted second-generation Tourneo Connect and Transit Connect. It produces 120 hp and 270 Nm; the 100-hp version is known as Z2GA.
1.5 EcoBlue family: Z2DA, Z2GA, Z2JA, Y9DA, ZTDA, ZTGA, ZTJA.
Specifications
| Production years | 2018-2022 |
| Displacement, cc | 1499 |
| Fuel system | Common Rail |
| Power output, hp | 120 |
| Torque output, Nm | 270 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 84.8 |
| Compression ratio | 16.4 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt and chain |
| Phase regulator | no |
| Turbocharging | Garrett GTD1244VZ |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 6.0 |
| Fuel type | diesel |
| Euro standards | EURO 6d |
| Fuel consumption, L/100 km (for Ford Tourneo Connect 2020) — city — highway — combined |
4.8 4.3 4.6 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 130 |
The engine was installed on:
- Ford Tourneo Connect 2 (V408) in 2018 – 2022;
- Ford Transit Connect 2 (V408) in 2018 – 2022.
Disadvantages of the Ford ZTGA engine
- The weak point of these PSA-designed diesels is the short chain between the camshafts: it stretches, and if this is missed, it breaks and the pistons hit the valves;
- Fitting the reinforced chain requires new camshafts, so the repair is expensive;
- The Bosch Common Rail system with piezo injectors is reliable but does not tolerate poor diesel;
- The particulate filter, EGR valve and NOx sensor cause a lot of trouble.
Frequently asked questions about the Ford ZTGA
How much power does the Ford ZTGA make?
The Ford ZTGA develops 120 hp and 270 Nm of torque.
How much oil does the Ford ZTGA take and which one?
Engine oil capacity: 6.0 liters. Recommended oil: 0W-20.
Does the Ford ZTGA have a timing belt or chain?
Timing drive of the Ford ZTGA: belt and chain.
Is the Ford ZTGA turbocharged?
Yes, the Ford ZTGA is turbocharged (Garrett GTD1244VZ).
Does the Ford ZTGA need valve clearance adjustment?
No, the Ford ZTGA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford ZTGA last?
The typical lifespan of the Ford ZTGA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Ford ZTGA?
Ford Tourneo Connect 2020: city 4.8, highway 4.3, combined 4.6 L/100 km.
What cars was the Ford ZTGA installed on?
Ford Tourneo Connect 2 (V408) in 2018 - 2022; Ford Transit Connect 2 (V408) in 2018 - 2022.
What are the common problems of the Ford ZTGA?
The weak point of these PSA-designed diesels is the short chain between the camshafts: it stretches, and if this is missed, it breaks and the pistons hit the valves. Fitting the reinforced chain requires new camshafts, so the repair is expensive. All known problems.
