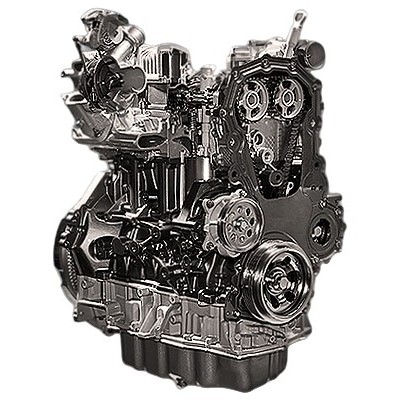

The 2.0-liter diesel Ford YMDA was produced in England from 2020 to 2022 for the third-generation Kuga before its facelift. It produces 190 hp and 400 Nm; the same engine in the Galaxy and S-Max is called BCCC.
2.0 EcoBlue family: BCCD, YNCA, YLCC, YLDA, YLDC, YMCA, YMCB, YMCC, YMDA, BCCA, BCCC, BCDA, YLCA, YLCB.
Specifications
| Production years | 2020-2022 |
| Displacement, cc | 1996 |
| Fuel system | Common Rail |
| Power output, hp | 190 |
| Torque output, Nm | 400 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 90 |
| Compression ratio | 16.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTE1446VZK |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 6.4 |
| Fuel type | diesel |
| Euro standards | EURO 6d-TEMP |
| Fuel consumption, L/100 km (for Ford Kuga 2021) — city — highway — combined |
6.5 4.3 5.4 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 203 |
The engine was installed on:
- Ford Kuga 3 (CX482) in 2020 – 2022.
Disadvantages of the Ford YMDA engine
- The piezo injection system with 2000 bar pressure is very sensitive to diesel quality;
- The engine does not tolerate overheating: the head gasket fails quickly, so keep an eye on the cooling system;
- The timing belt runs in the oil bath, so the oil should be changed as often as possible;
- Do not forget the oil pump belt: its failure is just as fatal for the engine, so replace it together with the timing belt;
- The particulate filter, EGR valve and AdBlue system cause a lot of trouble.
Frequently asked questions about the Ford YMDA
How much power does the Ford YMDA make?
The Ford YMDA develops 190 hp and 400 Nm of torque.
How much oil does the Ford YMDA take and which one?
Engine oil capacity: 6.4 liters. Recommended oil: 0W-30.
Does the Ford YMDA have a timing belt or chain?
The Ford YMDA uses a timing belt.
Is the Ford YMDA turbocharged?
Yes, the Ford YMDA is turbocharged (Garrett GTE1446VZK).
Does the Ford YMDA need valve clearance adjustment?
No, the Ford YMDA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford YMDA last?
The typical lifespan of the Ford YMDA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Ford YMDA?
Ford Kuga 2021: city 6.5, highway 4.3, combined 5.4 L/100 km.
What cars was the Ford YMDA installed on?
Ford Kuga 3 (CX482) in 2020 - 2022.
What are the common problems of the Ford YMDA?
The piezo injection system with 2000 bar pressure is very sensitive to diesel quality. The engine does not tolerate overheating: the head gasket fails quickly, so keep an eye on the cooling system. All known problems.
