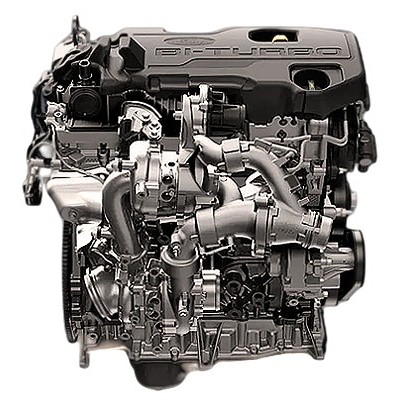

The 2.0-liter twin-turbo diesel Ford YLCA was built in England from 2018 to 2020 for the top European versions of the second-generation Edge. It produces 238 hp and 500 Nm; a similar engine in the Galaxy 3 and S-Max 2 is called YLCB.
2.0 EcoBlue family: BCCD, YNCA, YLCC, YLDA, YLDC, YMCA, YMCB, YMCC, YMDA, BCCA, BCCC, BCDA, YLCA, YLCB.
Specifications
| Production years | 2018-2020 |
| Displacement, cc | 1996 |
| Fuel system | Common Rail |
| Power output, hp | 238 |
| Torque output, Nm | 500 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 90 |
| Compression ratio | 16.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Bi-Turbo |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 7.0 |
| Fuel type | diesel |
| Euro standards | EURO 6d-TEMP |
| Fuel consumption, L/100 km (for Ford Edge 2020) — city — highway — combined |
8.0 5.7 6.6 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 205 |
The engine was installed on:
- Ford Edge 2 (CD539) in 2018 – 2020.
Disadvantages of the Ford YLCA engine
- The piezo injection system with 2000 bar pressure is very sensitive to diesel quality;
- The engine does not tolerate overheating: the head gasket fails quickly, so keep an eye on the cooling system;
- The timing belt runs in the oil bath, so the oil should be changed as often as possible;
- Do not forget the oil pump belt: its failure is just as fatal for the engine, so replace it together with the timing belt;
- The particulate filter, EGR valve and AdBlue system cause a lot of trouble.
Frequently asked questions about the Ford YLCA
How much power does the Ford YLCA make?
The Ford YLCA develops 238 hp and 500 Nm of torque.
How much oil does the Ford YLCA take and which one?
Engine oil capacity: 7.0 liters. Recommended oil: 0W-30.
Does the Ford YLCA have a timing belt or chain?
The Ford YLCA uses a timing belt.
Is the Ford YLCA turbocharged?
Yes, the Ford YLCA is turbocharged (Bi-Turbo).
Does the Ford YLCA need valve clearance adjustment?
No, the Ford YLCA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford YLCA last?
The typical lifespan of the Ford YLCA is ~250 000 km with proper maintenance.
What is the fuel consumption of the Ford YLCA?
Ford Edge 2020: city 8.0, highway 5.7, combined 6.6 L/100 km.
What cars was the Ford YLCA installed on?
Ford Edge 2 (CD539) in 2018 - 2020.
What are the common problems of the Ford YLCA?
The piezo injection system with 2000 bar pressure is very sensitive to diesel quality. The engine does not tolerate overheating: the head gasket fails quickly, so keep an eye on the cooling system. All known problems.
