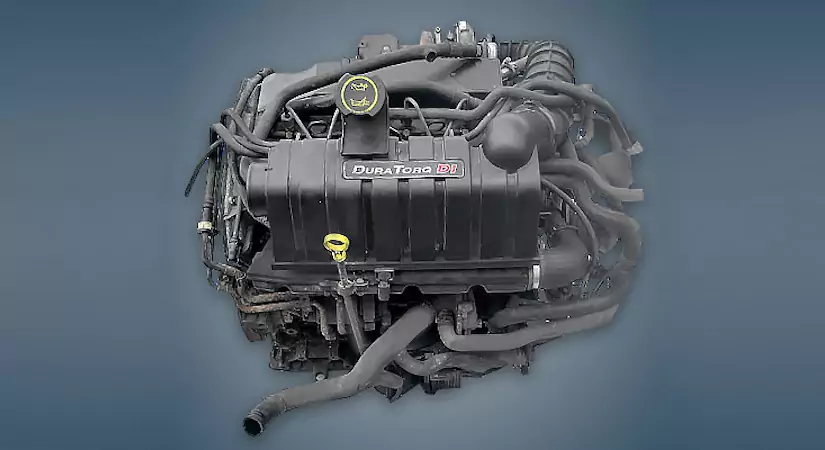

The 2.0-liter Ford D3FA or 2.0 TDDi Duratorq DI engine was produced from 2000 to 2006 and was installed only on the fourth generation of the Transit model in all its many bodies. The weakest modification in the company’s diesel family was not even equipped with an intercooler.
2.0 TDDi Duratorq ZSD (Puma) family: D3FA, F3FA, ABFA, D5BA, D6BA.
Specifications
| Production years | 2000-2006 |
| Displacement, cc | 1998 |
| Fuel system | direct injection |
| Power output, hp | 75 |
| Torque output, Nm | 185 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 86 |
| Compression ratio | 19.0 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | double row chain |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.4 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Ford Transit 2001) — city — highway — combined |
10.1 7.6 8.9 |
| Engine lifespan, km | ~320 000 |
| Weight, kg | 210 |
The engine was installed on:
- Ford Transit Mk6 in 2000 – 2006.
Disadvantages of the D3FA engine
- The Bosch VP30 high pressure fuel pump does not like impurities in the fuel and over time begins to drive chips;
- As soon as the contamination reaches the injectors, constant dips in traction appear;
- Relatively rapid wear here is subject to the beds of camshafts;
- On runs of 100 – 150 thousand km, the timing chain mechanism may require attention;
- Loud knocking under the hood usually means that the upper connecting rod bushings have broken.
Frequently asked questions about the Ford D3FA
How much power does the Ford D3FA make?
The Ford D3FA develops 75 hp and 185 Nm of torque.
How much oil does the Ford D3FA take and which one?
Engine oil capacity: 6.4 liters. Recommended oil: 5W-30.
Does the Ford D3FA have a timing belt or chain?
Timing drive of the Ford D3FA: double row chain.
Is the Ford D3FA turbocharged?
Yes, the Ford D3FA is turbocharged.
Does the Ford D3FA need valve clearance adjustment?
No, the Ford D3FA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford D3FA last?
The typical lifespan of the Ford D3FA is ~320 000 km with proper maintenance.
What is the fuel consumption of the Ford D3FA?
Ford Transit 2001: city 10.1, highway 7.6, combined 8.9 L/100 km.
What cars was the Ford D3FA installed on?
Ford Transit Mk6 in 2000 - 2006.
What are the common problems of the Ford D3FA?
The Bosch VP30 high pressure fuel pump does not like impurities in the fuel and over time begins to drive chips. As soon as the contamination reaches the injectors, constant dips in traction appear. All known problems.
