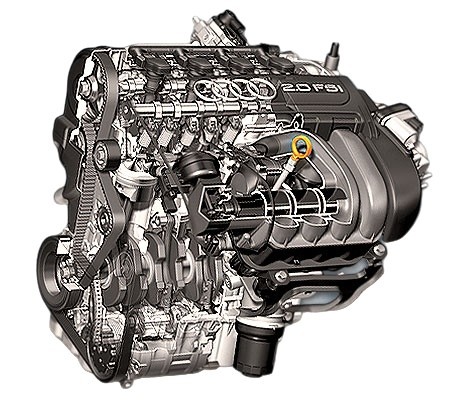

The 2.0-liter Audi AXW (EA113 2.0 FSI) was produced from 2003 to 2005 for the Audi A3 (8P), Volkswagen Golf 5 and Touran. This naturally aspirated FSI engine with direct injection produces 150 hp and 200 Nm.
EA113-FSI family: BVY, BVZ, AXW.
Specifications
| Production years | 2003-2005 |
| Displacement, cc | 1984 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 200 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 92.8 |
| Compression ratio | 11.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt and chain |
| Phase regulator | at the intake |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Audi A3 2004) — city — highway — combined |
9.6 5.3 6.9 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 130 |
The engine was installed on:
- Audi A3 2 (8P) in 2003 – 2005;
- Volkswagen Golf 5 (1K) in 2003 – 2005;
- Volkswagen Touran 1 (1T) in 2003 – 2004.
Disadvantages of the Audi AXW engine
- Because of direct injection, the intake quickly cokes up, the EGR valve clogs and the electronic throttle sticks;
- The engine is known for hard starting in severe frost;
- Watch the timing belt: its failure is often fatal for the engine; the chain between the camshafts and the phaser have a modest life;
- The high-pressure pump cam follower, the thermostat and the in-tank fuel pump are also weak points.
Frequently asked questions about the Audi AXW
How much power does the Audi AXW make?
The Audi AXW develops 150 hp and 200 Nm of torque.
How much oil does the Audi AXW take and which one?
Engine oil capacity: 4.6 liters. Recommended oil: 5W-30.
Does the Audi AXW have a timing belt or chain?
Timing drive of the Audi AXW: belt and chain.
Is the Audi AXW turbocharged?
No, the Audi AXW is naturally aspirated.
Does the Audi AXW need valve clearance adjustment?
No, the Audi AXW has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Audi AXW last?
The typical lifespan of the Audi AXW is ~250 000 km with proper maintenance.
What is the fuel consumption of the Audi AXW?
Audi A3 2004: city 9.6, highway 5.3, combined 6.9 L/100 km.
What cars was the Audi AXW installed on?
Audi A3 2 (8P) in 2003 - 2005; Volkswagen Golf 5 (1K) in 2003 - 2005; Volkswagen Touran 1 (1T) in 2003 - 2004.
What are the common problems of the Audi AXW?
Because of direct injection, the intake quickly cokes up, the EGR valve clogs and the electronic throttle sticks. The engine is known for hard starting in severe frost. All known problems.
