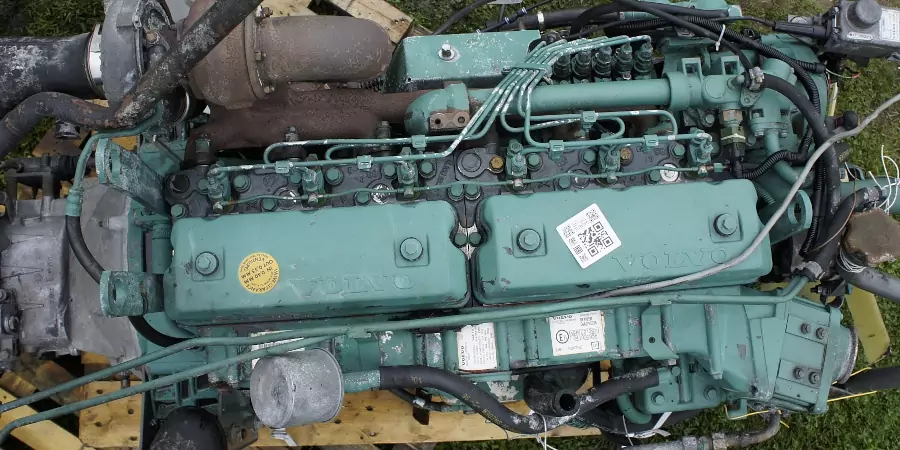

Engine Volvo D6A210

Engine Volvo D6A210

The Volvo D6A210 are versatile engines that have found applications in the heavy industry for land transport and as marine engines.

The entire engine series is equipped with the same electronics used in the Volvo FH, FM, NH series. This allows you to achieve complete functional compliance among many of the most important components and assemblies of trucks FL, which undoubtedly facilitates the diagnosis of malfunctions. The D6A210 has a mechanical fuel injection control compared to the subsequent D6B.

Specifications

Displacement, cc 5480
Power output, hp / kW 210 / 154 at 2400 rpm
Torque output, Nm / rpm 1560
Compression 19:1
Cylinder bore, mm 98,4
Piston stroke, mm 120
Cylinder head DOHC
Configuration inline
Number of cylinders 6
Valves 12
Turbine turbo / charge air cooler
Fuel type diesel
Timing mechanism chain
Timing rocker arm
Dimensions, mm
— length
— width
— height
1171
605
995
Dry weight, kg 580
Combustion chamber working volume, cc 48.07
