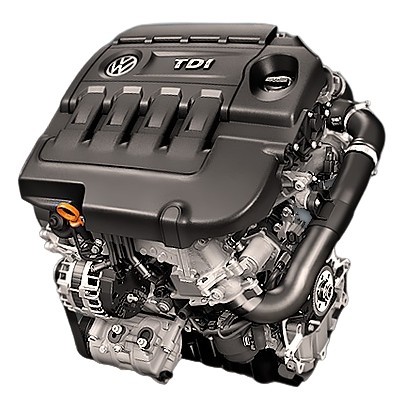

The 1.6-liter turbodiesel Volkswagen DGDA was produced from 2016 to 2019 and was installed on the Volkswagen Touran. This EA288 diesel has Common Rail injection, a Garrett GTD1244VZ turbocharger and a timing belt and produces 116 hp and 250 Nm.
1.6 TDI EA288 family: DCXA, CLHA, CXMA, DGTE, CRKA, CXXB, DDYA, DGDA, DCZA, DGTD.
Specifications
| Production years | 2016-2019 |
| Displacement, cc | 1598 |
| Fuel system | Common Rail |
| Power output, hp | 116 |
| Torque output, Nm | 250 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79.5 |
| Piston stroke, mm | 80.5 |
| Compression ratio | 16.2 |
| Features | SCR |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTD1244VZ |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.7 |
| Fuel type | diesel |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Volkswagen Touran 2020) — city — highway — combined |
5.5 4.2 4.7 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 175 |
The engine was installed on:
- Volkswagen Touran 2 (5T) in 2016 – 2019.
Disadvantages of the Volkswagen DGDA engine
- Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common;
- The switchable water pump is a frequent cause of overheating;
- The Bosch fuel system with 1800-2000 bar injectors does not tolerate poor diesel;
- When replacing the timing belt, do not forget the separate belt of the oil and vacuum pump; if the timing belt breaks, the valves bend;
- Other problems are related to clogging of the particulate filter and EGR valve.
Frequently asked questions about the Volkswagen DGDA
How much power does the Volkswagen DGDA make?
The Volkswagen DGDA develops 116 hp and 250 Nm of torque.
How much oil does the Volkswagen DGDA take and which one?
Engine oil capacity: 4.7 liters. Recommended oil: 5W-30.
Does the Volkswagen DGDA have a timing belt or chain?
The Volkswagen DGDA uses a timing belt.
Is the Volkswagen DGDA turbocharged?
Yes, the Volkswagen DGDA is turbocharged (Garrett GTD1244VZ).
Does the Volkswagen DGDA need valve clearance adjustment?
No, the Volkswagen DGDA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen DGDA last?
The typical lifespan of the Volkswagen DGDA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen DGDA?
Volkswagen Touran 2020: city 5.5, highway 4.2, combined 4.7 L/100 km.
What cars was the Volkswagen DGDA installed on?
Volkswagen Touran 2 (5T) in 2016 - 2019.
What are the common problems of the Volkswagen DGDA?
Oil leaks from the crankshaft seal and coolant leaks from the intake intercooler are common. The switchable water pump is a frequent cause of overheating. All known problems.
