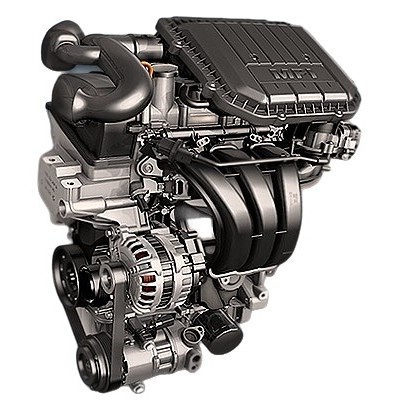

The 1.0-liter three-cylinder Volkswagen CHYB was produced from 2011 to 2019 and was installed on the Seat Ibiza, Seat Mii, Skoda Citigo, Skoda Fabia and other models of the group. This naturally aspirated EA211 engine has port injection, a timing belt and two camshafts and produces 75 hp and 95 Nm.
1.0 MPI EA211 family: CHYA, CHYB, CHYC, CHYE, DAFA, DFNA, DFNB, DSGA, DSGB, DSGC, DSGD.
Specifications
| Production years | 2011-2019 |
| Displacement, cc | 999 |
| Fuel system | distributed injection |
| Power output, hp | 75 |
| Torque output, Nm | 95 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 76.4 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at the intake |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.4 |
| Fuel type | petrol |
| Euro standards | EURO 5 / 6 |
| Fuel consumption, L/100 km (for Volkswagen Polo 2015) — city — highway — combined |
6.4 4.4 5.1 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 81 |
The engine was installed on:
- Seat Ibiza 4 (6J) in 2015 – 2017, Ibiza 5 (6F) in 2017 – 2018;
- Seat Mii 1 (KF) in 2012 – 2019;
- Skoda Citigo 1 (NF) in 2012 – 2019;
- Skoda Fabia 3 (NJ) in 2014 – 2019;
- Volkswagen Polo 5 (6R) in 2014 – 2017, Polo 6 (AW) in 2017 – 2018;
- Volkswagen Up 1 (AA) in 2011 – 2019.
Disadvantages of the Volkswagen CHYB engine
- A simple and fairly durable naturally aspirated engine, but only with proper maintenance;
- Saving on maintenance quickly leads to stuck piston rings and oil consumption;
- The plastic coolant module (water pump with thermostats) often leaks after about 100,000 km;
- Watch the timing belt: if it breaks, the valves usually bend;
- The exhaust heat shield mount is weak and the shield often falls off.
Frequently asked questions about the Volkswagen CHYB
How much power does the Volkswagen CHYB make?
The Volkswagen CHYB develops 75 hp and 95 Nm of torque.
How much oil does the Volkswagen CHYB take and which one?
Engine oil capacity: 3.4 liters. Recommended oil: 5W-30.
Does the Volkswagen CHYB have a timing belt or chain?
The Volkswagen CHYB uses a timing belt.
Is the Volkswagen CHYB turbocharged?
No, the Volkswagen CHYB is naturally aspirated.
Does the Volkswagen CHYB need valve clearance adjustment?
No, the Volkswagen CHYB has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen CHYB last?
The typical lifespan of the Volkswagen CHYB is ~250 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen CHYB?
Volkswagen Polo 2015: city 6.4, highway 4.4, combined 5.1 L/100 km.
What cars was the Volkswagen CHYB installed on?
Seat Ibiza 4 (6J) in 2015 - 2017, Ibiza 5 (6F) in 2017 - 2018; Seat Mii 1 (KF) in 2012 - 2019; Skoda Citigo 1 (NF) in 2012 - 2019; Skoda Fabia 3 (NJ) in 2014 - 2019; Volkswagen Polo 5 (6R) in 2014 - 2017, Polo 6 (AW) in 2017 - 2018; Volkswagen Up 1 (AA) in 2011 - 2019.
What are the common problems of the Volkswagen CHYB?
A simple and fairly durable naturally aspirated engine, but only with proper maintenance. Saving on maintenance quickly leads to stuck piston rings and oil consumption. All known problems.
