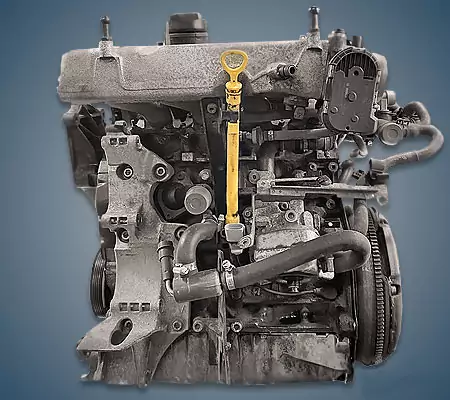

The Volkswagen AWC 1.8-liter turbo engine was produced by the concern from 2000 to 2010 and was installed on the restyled version of the first generation Sharan and the similar Alhambra. This motor is distinguished by the presence of a proprietary controlled hydraulic tensioner-phase regulator.
EA113-1.8T family: AGU, AWT, AMB, AWM, AUQ, AWC.
Specifications
| Production years | 2000-2010 |
| Displacement, cc | 1781 |
| Fuel system | distributed injection |
| Power output, hp | 150 |
| Torque output, Nm | 220 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 86.4 |
| Compression ratio | 9.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain & belt |
| Phase regulator | controlled tensioner |
| Turbocharging | KKK K03 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for VW Sharan 2001) — city — highway — combined |
13.0 7.4 9.7 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 150 |
The engine was installed on:
- Seat Alhambra 1 (7M) in 2000 – 2010;
- Volkswagen Sharan 1 (7M) in 2000 – 2010.
Disadvantages of the VW AWC engine
- This is a strong and very resourceful engine, but it often suffers from air leaks.
- Its intake system consists of many nozzles and the cause can be searched for a long time.
- And here is a complex and not very reliable dual-circuit crankcase ventilation system.
- The turbine runs for a long time and does not cause problems, but only with a working crankcase ventilation system.
- Often there are antifreeze leaks through the plastic tee of the cooling system.
- The branded hydraulic tensioner does not differ in a special resource, it is also a phase regulator.
- Weak points include ignition coils, fuel pump and coolant temperature sensor.
Frequently asked questions about the Volkswagen AWC
How much power does the Volkswagen AWC make?
The Volkswagen AWC develops 150 hp and 220 Nm of torque.
How much oil does the Volkswagen AWC take and which one?
Engine oil capacity: 4.0 liters. Recommended oil: 5W-30.
Does the Volkswagen AWC have a timing belt or chain?
Timing drive of the Volkswagen AWC: chain & belt.
Is the Volkswagen AWC turbocharged?
Yes, the Volkswagen AWC is turbocharged (KKK K03).
Does the Volkswagen AWC need valve clearance adjustment?
No, the Volkswagen AWC has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen AWC last?
The typical lifespan of the Volkswagen AWC is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen AWC?
VW Sharan 2001: city 13.0, highway 7.4, combined 9.7 L/100 km.
What cars was the Volkswagen AWC installed on?
Seat Alhambra 1 (7M) in 2000 - 2010; Volkswagen Sharan 1 (7M) in 2000 - 2010.
What are the common problems of the Volkswagen AWC?
This is a strong and very resourceful engine, but it often suffers from air leaks. Its intake system consists of many nozzles and the cause can be searched for a long time. All known problems.
