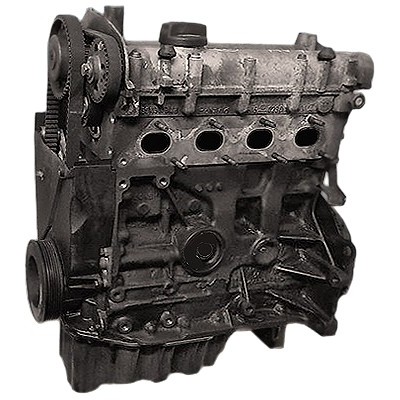

The 1.6-liter 16-valve Volkswagen AVY (EA111 family) was produced from 2000 to 2005 for the Lupo GTI and Polo GTI (6N). This naturally aspirated DOHC engine with port injection and an intake camshaft phaser produces 125 hp and 152 Nm.
EA111-1.6 family: ABU, AEE, AUS, AZD, BCB, BTS, CFNA, CFNB, AJV, AVY.
Specifications
| Production years | 2000-2005 |
| Displacement, cc | 1598 |
| Fuel system | distributed injection |
| Power output, hp | 125 |
| Torque output, Nm | 152 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 76.5 |
| Piston stroke, mm | 86.9 |
| Compression ratio | 11.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at the intake |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.2 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for VW Lupo GTI 2001) — city — highway — combined |
9.5 5.3 7.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 118 |
The engine was installed on:
- Volkswagen Lupo 1 (6X) in 2000 – 2005;
- Volkswagen Polo 3 (6N) in 2000 – 2001.
Disadvantages of the Volkswagen AVY engine
- A sturdy engine whose only notable weak point is the short-lived camshaft phaser;
- It is rare, so used engines and some parts are scarce;
- Watch the timing belt: if it breaks, the valves usually bend;
- Oil starvation due to a clogged oil pickup is common.
Frequently asked questions about the Volkswagen AVY
How much power does the Volkswagen AVY make?
The Volkswagen AVY develops 125 hp and 152 Nm of torque.
How much oil does the Volkswagen AVY take and which one?
Engine oil capacity: 3.2 liters. Recommended oil: 5W-30.
Does the Volkswagen AVY have a timing belt or chain?
The Volkswagen AVY uses a timing belt.
Is the Volkswagen AVY turbocharged?
No, the Volkswagen AVY is naturally aspirated.
Does the Volkswagen AVY need valve clearance adjustment?
No, the Volkswagen AVY has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Volkswagen AVY last?
The typical lifespan of the Volkswagen AVY is ~300 000 km with proper maintenance.
What is the fuel consumption of the Volkswagen AVY?
VW Lupo GTI 2001: city 9.5, highway 5.3, combined 7.0 L/100 km.
What cars was the Volkswagen AVY installed on?
Volkswagen Lupo 1 (6X) in 2000 - 2005; Volkswagen Polo 3 (6N) in 2000 - 2001.
What are the common problems of the Volkswagen AVY?
A sturdy engine whose only notable weak point is the short-lived camshaft phaser. It is rare, so used engines and some parts are scarce. All known problems.
