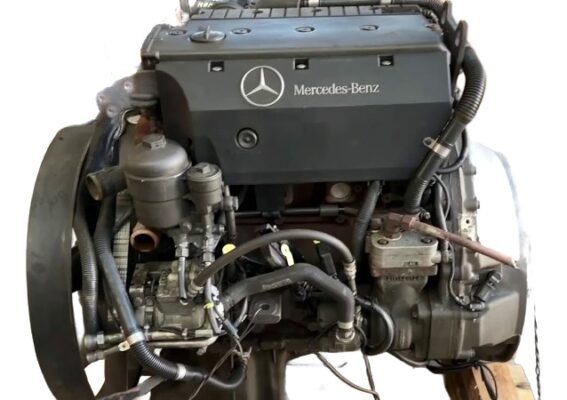

Engine Mercedes OM924LA

Engine Mercedes OM924LA
Displacement
4.8 L4801 cc
Production
10/2004
Fuel
diesel

Mercedes developed the 4-cylinder OM924LA engine for trucks and tractor units with payloads from 6.5 to 15 tons. These engines offer an excellent combination of performance and low weight.

Compared to a 6-cylinder engine with similar output, the Mercedes OM 924 LA is about 100 kg lighter. This provides a significant advantage in payload. Later, several versions of the Mercedes OM924LA engine were developed. These were six-cylinder engines with higher power and efficiency.

Specifications

Engine’s type diesel
Also called OM 924 LA
Production years 10/2004
Power output, kW (hp) 160 (218)
Displacement, cc 4801
Number of cylinders 4
Valves 12
Torque output, Nm / rpm 810
Compression ratio (compression) 17.4:1
Cylinder bore 106 mm
Piston stroke 136 mm
Crankshaft bearings 5
Configuration inline
Fuel type diesel
Turbine turbo / charge air cooler
Euro standards Euro 3
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water

The Mercedes OM924LA is ideal for vehicles operating on demanding routes with steep inclines. Thanks to its excellent performance, it easily handles demanding tasks even at sub-zero temperatures.
Mercedes OM924LA

Engine Modifications

  • OM 924.910 160 kW (218 HP);
  • OM 924.911 with 160 kW (218 hp);
  • OM 924.912 160 kW (218 HP);
  • OM 924.914 160 kW (218 HP);
  • OM 924.915 160 kW (218 HP);
  • OM 924.916 with 160 kW (218 hp), for models MB U 5000, Atego 1022, Atego 1322, Atego 1522, Atego 822, Atego 922;
  • OM 924.917 with 142 kW (190 hp);
  • OM 924.919 with 160 kW (218 hp);
  • OM 924.920 with 160 kW (218 hp), manufactured from 10/2004;
  • OM 924.922 160 kW (218 HP);
  • OM 924.923 with 160 kW (218 hp);
  • OM 924.924 with 160 kW (218 hp).
