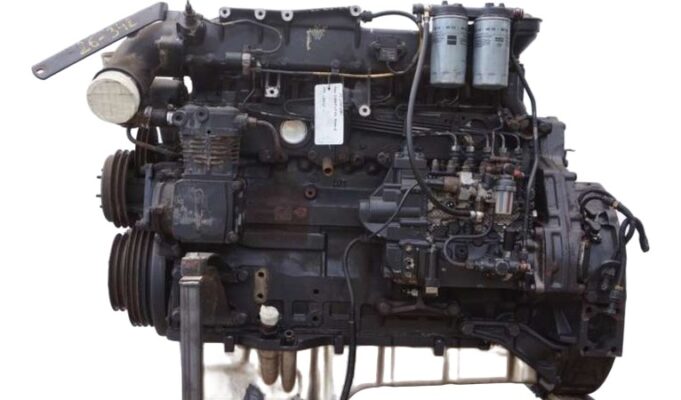

Engine MAN D2865

The MAN D2865 engine is a water-cooled 5-cylinder in-line engine, produced since 1992. Engine power is 270 hp (198 kW) with an engine displacement of 9973 cubic centimeters (10 liters).

Specifications

Engine’s type diesel
Power output, kW / hp 198 / 270
Displacement, cc 9973
Number of cylinders 5
Valves 10
Torque output 1150 Nm / 1100 rpm
Compression 17.0:1
Cylinder bore 128 mm
Piston stroke 155 mm
Crankshaft bearings 6
Configuration inline
Fuel type diesel
Fuel system inline injection pump
Turbine turbo / charge air cooler
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water

The D2865 engine was installed on the following MAN trucks:

  • F90 19.342 F, 19.342 FL, 19.342 FLL;
  • F90 19.342 FA;
  • F90 19.342 FS, 19.342 FLS, 19.342 FLLS;
  • F90 19.342 FAS;
  • F90 19.342 FK;
  • F90 19.342 FAK;
  • F90 24.342 FNL, 24.342 FNLL;
  • F90 26.342 DF, 26.342 DFL;
  • F90 26.342 DFS;
  • F90 26.342 DFK, 26.342 DFLK;
  • F90 32.342 VFK;
  • F90 33.342 DF;
  • F90 33.342 DFA;
  • F90 35.342 VF;
  • F90 35.342 VFK;
  • F90 41.342 VF.
