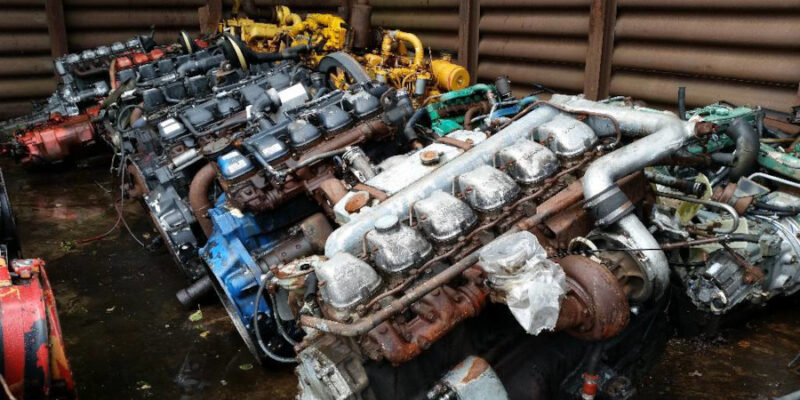

Engine MAN D2566

Engine MAN D2566

The MAN D2566 engine is a 6-cylinder diesel engine from MAN. All members of this family have excellent technical characteristics and are high-performance.

The series contains several variants of this engine, differing in power.

  • D2566 MT – power reaches 206 kW, the model is not equipped with a turbocharger.
  • D2566 MTE – this variant develops 147-241 kW.
  • D2566 MTF – has a power of 206 kW, as well as versions MTSF, MTH, MTFG.
  • D2566 MTHO – power reaches 235 kW.


Engine’s type diesel
Power output, hp / kW 320 / 235 at 2200 rpm
Displacement, cc 11413
Number of cylinders 6
Valves 12
Compression ratio (compression) 18:1
Cylinder bore, mm 125
Piston stroke, mm 155
Crankshaft bearings 6
Configuration inline
Fuel type diesel
Fuel system inline injection pump
Turbine intake
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water

1 thought on “Engine MAN D2566”

  1. Adolf (Badger) ITEN

    hi good morning . one question can i interchange a D0836 with a D2566 ? wath conversion too have do make ? or can a flanged on without hasels. i want do change the engien from a commen-rail do a old strait 6cyl. inline with a mechanicel fuelpump system ? i am in southernafrica but i am a swiss national . in the time of the boykotts ADE (atlantis diesel engeeniering) producte and engien with (mercedes,man,iveco und deutz KHD) an engien in southafrica and most of the trucks jusde that engien. and dat engien looks like D2566 engien. 6cyl , inline , turbochargte, watercoold with or without intercooler about 240KW and normaly with a Fuller/Eaton gearbox manual 9speed or 13speed have you ever hoerd of dat engien it also had weatsleevs and singel cylinderheads. could be overhault in place wenn the crankshaft was not damagde. the pumptimieng 15-18 degress BTDC. i think now hue have a good idee wath engien it is.. i am a dieselmech. by traed but workmanly on big Earthmoving und Miningmaschiens rigth trough AFRICA. and a have a complet engien rebuilt at home. i also have a KHD (deutz) engien BF6L 913 turbo 232KW aircoolt 2300rpm complet, balanced and dinotested 24h/ 230 KW. the engien is zero rated. und i like aircoold engien very much. berliet,magirus,faun and krupp 2/strock. i will turn 72 years of age,dat is the riesen i now all thys older good engiens ( NO ELEKTRONIKS ) . thanks. kind regards Adolf (Badger) ITEN ps. i hope i will hear from you soon. CIOA
