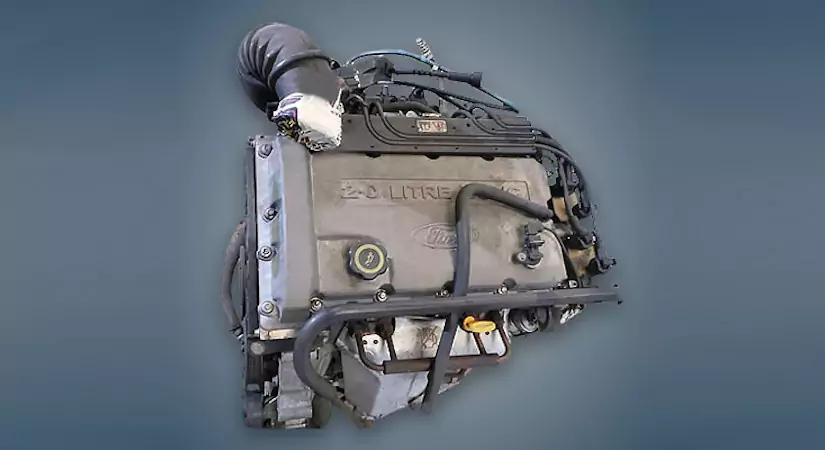

The 2.0-liter 8-valve Ford ZVSA or 2.0 I4 DOHC engine was assembled from 2000 to 2006 and installed on a restyled version of the first generation of the popular Galaxy minivan. Prior to the modernization of the model in 2000, this power unit was known under the NSE index.
I4 DOHC family:
2.0 L 8V – N8A, N9A, N9C, NSD, NSE, ZVSA;
2.0 L 16V – N3A, N7A;
2.3 L 16V – Y5A, Y5B, E5SA.
Specifications
| Production years | 2000-2006 |
| Displacement, cc | 1998 |
| Fuel system | distributed injection |
| Power output, hp | 115 |
| Torque output, Nm | 170 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 86 |
| Compression ratio | 9.8 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Ford Galaxy 2001) — city — highway — combined |
13.7 7.8 9.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 165 |
The engine was installed on:
- Ford Galaxy Mk1 in 2000 – 2006.
Disadvantages of the ZVSA engine
- By the time of installation on Galaxy, the main problems of the internal combustion engine of this series were solved.
- The only thing is that timing chains tend to stretch after 200,000 km.
- Cleaning the idle speed control will help you get rid of floating speed.
- Many owners have experienced leaks in the front and rear crankshaft oil seals.
- When using low-quality oils, hydraulic lifters can knock to 100,000 km.
Frequently asked questions about the Ford ZVSA
How much power does the Ford ZVSA make?
The Ford ZVSA develops 115 hp and 170 Nm of torque.
How much oil does the Ford ZVSA take and which one?
Engine oil capacity: 4.5 liters. Recommended oil: 5W-30.
Does the Ford ZVSA have a timing belt or chain?
The Ford ZVSA uses a timing chain.
Is the Ford ZVSA turbocharged?
No, the Ford ZVSA is naturally aspirated.
Does the Ford ZVSA need valve clearance adjustment?
No, the Ford ZVSA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Ford ZVSA last?
The typical lifespan of the Ford ZVSA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Ford ZVSA?
Ford Galaxy 2001: city 13.7, highway 7.8, combined 9.9 L/100 km.
What cars was the Ford ZVSA installed on?
Ford Galaxy Mk1 in 2000 - 2006.
What are the common problems of the Ford ZVSA?
By the time of installation on Galaxy, the main problems of the internal combustion engine of this series were solved. The only thing is that timing chains tend to stretch after 200,000 km. All known problems.
What engines are related to the Ford ZVSA?
I4 DOHC family: E5SA.
