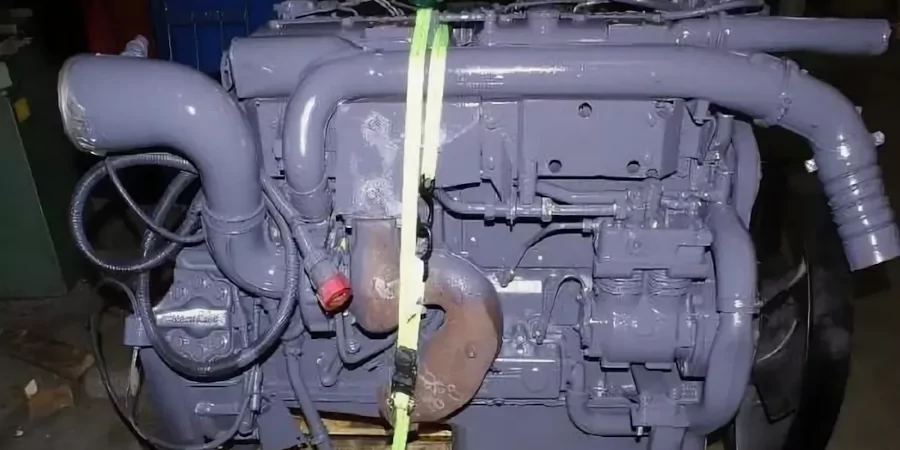

Engine DAF RS 180

Engine DAF RS 180

The DAF RS 180 engine is an 8-liter, 6-cylinder unit with 2 valves per cylinder, with a piston stroke of 132 mm. Installed on trucks with a flatbed / chassis with a 4×4 wheel arrangement.

Specifications

Engine’s type diesel
Power output, hp / kW 245 / 180 at 2300 rpm
Displacement, cc 8650
Number of cylinders 6
Valves 12
Torque output, Nm / rpm 1400
Compression ratio (compression) 16,5:1
Cylinder bore, mm 118
Piston stroke, mm 132
Crankshaft bearings 7
Configuration inline
Fuel type diesel
Fuel system inline injection pump
Turbine turbo / charge air cooler
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water

Application

  • DAF 75 FA 75.240;
  • DAF 75 FT 75.240.
