Engine DAF RS 222

Engine DAF RS 222

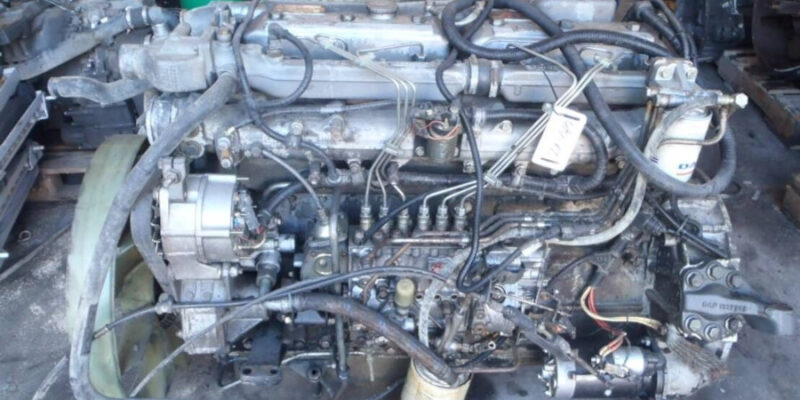

The DAF RS 222 engine is a 302 horsepower diesel engine. The RS 222 has 6 cylinders with 12 valves and a volume of 8.5 liters. The RS 222 engine model was installed on the DAF 75 FA 75.300 and DAF 75 FT 75.300 trucks.

This motor has a long service life and economy during use. It rarely breaks down, and its repair does not require a lot of money and time.


Engine’s type diesel
Power output, hp / kW 302 / 222
Displacement, cc 8650
Number of cylinders 6
Valves 12
Torque output, Nm / rpm 1400
Compression ratio (compression) 16,5:1
Cylinder bore, mm 118
Piston stroke, mm 132
Crankshaft bearings 7
Configuration inline
Fuel type diesel
Fuel system inline injection pump
Turbine turbo / charge air cooler
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water
