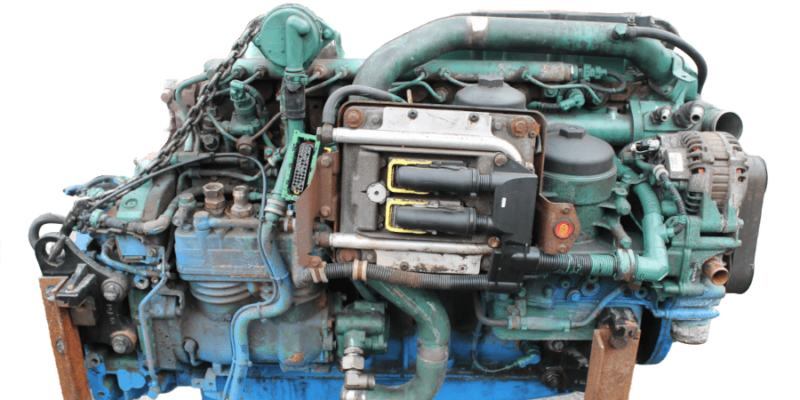

Engine Volvo D7E240

Engine Volvo D7E240

The D7E240 is a 7.2 liter, in-line, 6-cylinder, turbocharged, intercooled diesel engine. The engine has a power of 240 hp and a torque of 920 Nm. It complies with the Euro 4 emission standard.

The engine has a single cylinder head and a centrally located camshaft, which, by means of pushers, controls the operation of four valves in each cylinder. The engine is controlled electronically. The Common Rail system is responsible for fuel injection. In conjunction with the Selective Catalytic Reduction (SCR) system, the engine complies with the Euro 4 emission standard.


Manufacturer Volvo
Also called D7E240
Production years 2006
Cylinder block alloy cast iron
Fuel system direct injection
Configuration inline
Number of cylinders 6
Piston stroke, mm 130
Cylinder bore, mm 108
Compression ratio 18
Displacement, cc 7200
Power output, hp 240/2300
Torque output, Nm / rpm 920/1700
Fuel type diesel
Euro standards Euro 4
Weight, kg 670
Engine lifespan, thousand km
— official information
1 000

Power and torque versus rpm graph

The engine has a particularly wide torque range, which means that it can run smoothly at economical rpm and with minimal gear changes. The engine has excellent torque at low revs for quick accelerator response and smoother driving. One of the reasons for the exceptional handling is fuel injection using common rail technology. Fuel is injected through one high pressure tube. The injection pressure and injection period are electronically controlled, which ensures accurate measurement and excellent atomization of the fuel during injection into the combustion chamber. The control instantly adjusts the injection parameters to the current operating conditions. The ability to inject fuel after the main shot significantly increases flexibility.
