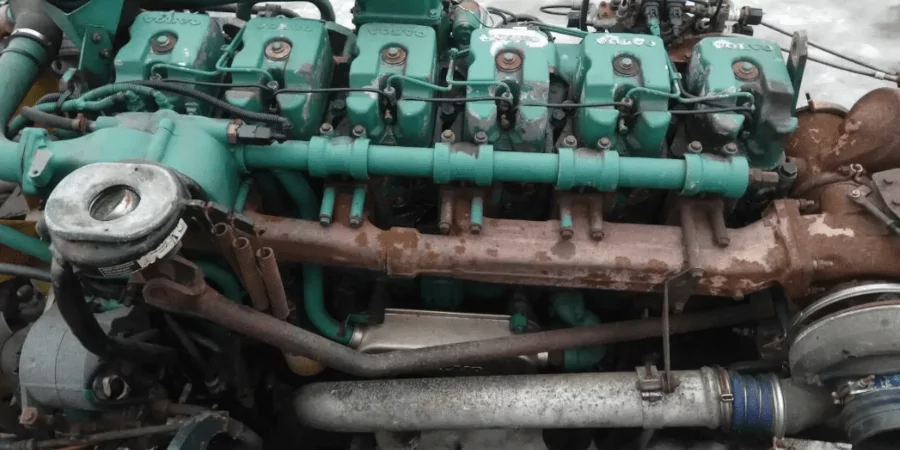

Engine Volvo D16A470

Engine Volvo D16A470

The D16A470 engines are direct injection, water cooled, 6 cylinder diesel in-line units specially designed for heavy commercial vehicles.

The engine power is 470 hp. with a volume of 16123 cubic meters. see (16 liters). The power index is 29 hp. for 1 liter (1000 cc) volume. This type of engine was launched in January 1993.

The engine is equipped with a reliable and durable cylinder block, an overhead camshaft, and a trouble-free injection system. There are four valves on each of the six cylinders of the motor. The turbocharging system increases the power of these units, and the special design of the heat exchanger, combined with the updated engine management system (EMC-2), has significantly increased the performance and controllability of the Volvo D16A 470 engines.


Manufacturer Volvo
Also called D16A470
Configuration Water-cooled inline motor
Number of cylinders 6
Valves 24
Piston stroke, mm 165
Cylinder bore, mm 144
Displacement, cc 16122
Power output, hp 470
Torque output, Nm / rpm 1800
Euro standards Euro 2

Engine improvements

Lubrication system:

  • full flow oil cooler;
  • full flow recyclable oil filters with twist effect for high filtration efficiency;
  • the ability to measure the oil level when the engine is running.

Fuel system:

  • deaeration system – fuel remains in the engine when filters are changed;
  • non-return fuel valve;
  • electronically controlled unit injectors;
  • coarse fuel filter with water separator and water-in-fuel indicator.

The Volvo D16A 470 engines use advanced technologies that help the units use less engine oil, less fuel and reduce maintenance time and money. Accurate control of combustion, air flow and injection algorithm provides higher fuel efficiency, which can help lower operating costs through fuel savings and lower emissions. In addition, they are the best choice in terms of environmental safety.

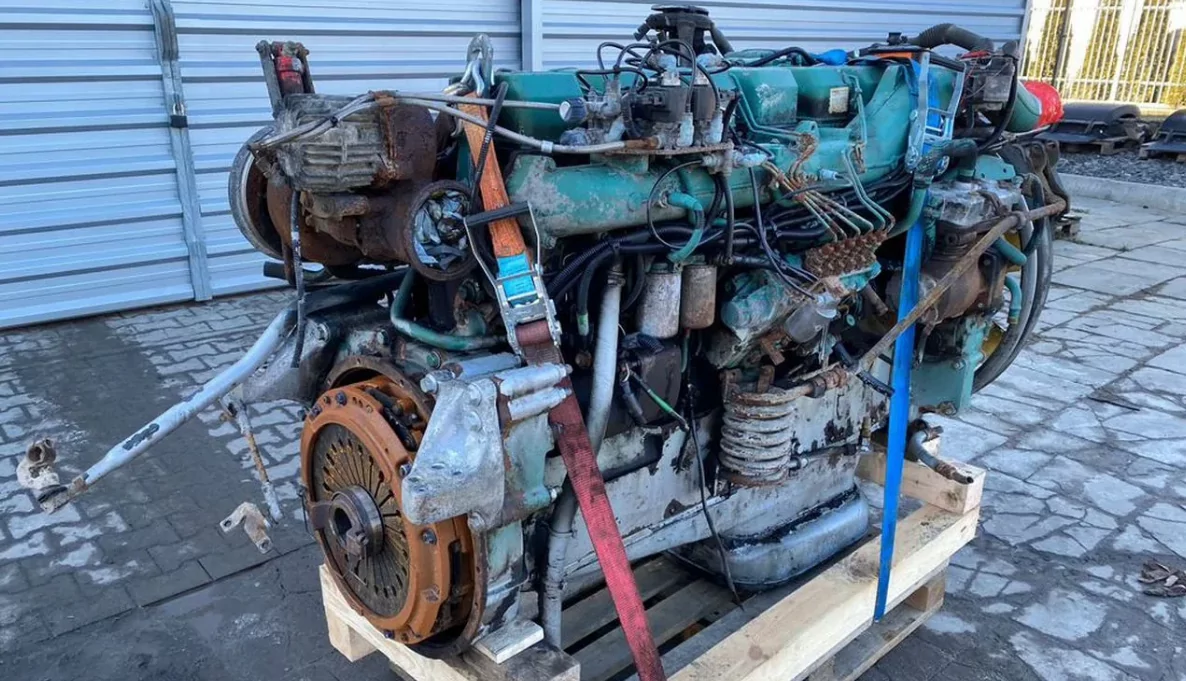

Engine D16A470

Explanation of marking D16A470

D Motor fuel – diesel
16 Cylinder volume, l.
A Engine Generation
470 Engine power – 470 HP

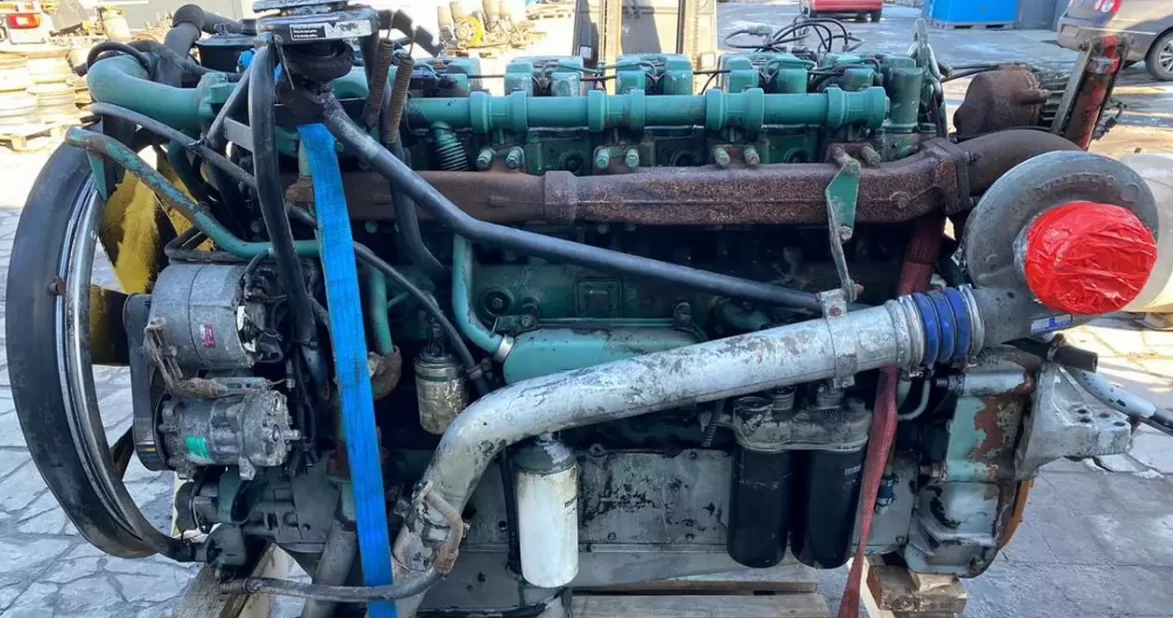

Volvo D16A470
Features of the D16A470 engine:

  • High torque
  • Airborne NVG
  • Fully Electronic Management EMS2
  • High power in a compact size
  • Low noise level
  • Low fuel and oil consumption

The Volvo D16A470 engine is ideal when high power is required at low operating costs. Their increased working life allows you to be confident in it for a long period of time. And the excellent environmental parameters of the motors of this series are an excellent addition to their general characteristics.
