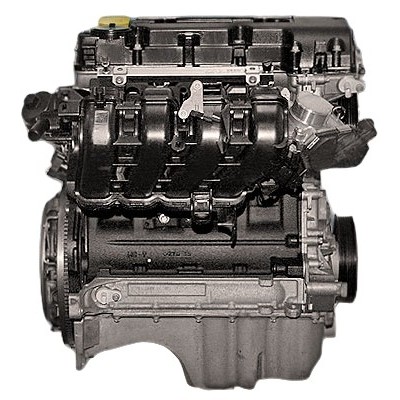

The 1.4-liter Opel B14XER was produced from 2013 to 2018 for the Adam and Meriva B. This 100-hp naturally aspirated engine does not even have Twinport flaps in the intake manifold; the Euro 6d-TEMP version is called D14XER.
B10 family: B12XEL, B14XEL, B14XER, B16XER.
Specifications
| Production years | 2013-2018 |
| Displacement, cc | 1398 |
| Fuel system | distributed injection |
| Power output, hp | 100 |
| Torque output, Nm | 130 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 73.4 |
| Piston stroke, mm | 82.6 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | DCVCP |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.2 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Opel Meriva 2015) — city — highway — combined |
7.6 5.0 6.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 105 |
The engine was installed on:
- Opel Adam A (M13) in 2014 – 2018;
- Opel Meriva B (S10) in 2013 – 2017.
Disadvantages of the Opel B14XER engine
- A simple engine with a cast-iron block and a long service life;
- Cracked hoses and a torn crankcase ventilation valve membrane cause a lot of trouble;
- The single ignition coil module often fails before 80,000-100,000 km;
- The purge valve and crankshaft seals are also weak points.
Frequently asked questions about the Opel B14XER
How much power does the Opel B14XER make?
The Opel B14XER develops 100 hp and 130 Nm of torque.
How much oil does the Opel B14XER take and which one?
Engine oil capacity: 4.2 liters. Recommended oil: 5W-30.
Does the Opel B14XER have a timing belt or chain?
The Opel B14XER uses a timing chain.
Is the Opel B14XER turbocharged?
No, the Opel B14XER is naturally aspirated.
Does the Opel B14XER need valve clearance adjustment?
No, the Opel B14XER has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Opel B14XER last?
The typical lifespan of the Opel B14XER is ~300 000 km with proper maintenance.
What is the fuel consumption of the Opel B14XER?
Opel Meriva 2015: city 7.6, highway 5.0, combined 6.0 L/100 km.
What cars was the Opel B14XER installed on?
Opel Adam A (M13) in 2014 - 2018; Opel Meriva B (S10) in 2013 - 2017.
What are the common problems of the Opel B14XER?
A simple engine with a cast-iron block and a long service life. Cracked hoses and a torn crankcase ventilation valve membrane cause a lot of trouble. All known problems.
