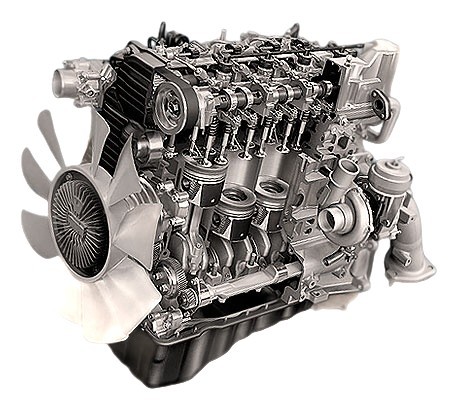

The 2.5-liter diesel Mazda WL-C was produced from 2006 to 2011 for the Mazda BT-50 and Ford Ranger pickups. It is the Common Rail version of the WL-T diesel, also known as WLAA and WLAE, and produces 143 hp and 330 Nm.
Specifications
| Production years | 2006-2011 |
| Displacement, cc | 2499 |
| Fuel system | Common Rail |
| Power output, hp | 143 |
| Torque output, Nm | 330 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 93 |
| Piston stroke, mm | 92 |
| Compression ratio | 18.0 |
| Features | VSC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | IHI RHV4 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.0 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Mazda BT-50 2009) — city — highway — combined |
10.9 7.8 8.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 230 |
The engine was installed on:
- Ford Ranger 2 (PJ) in 2006 – 2011;
- Mazda BT-50 I (UN) in 2006 – 2011.
Disadvantages of the Mazda WL-C engine
- The Bosch Common Rail system is reliable but very sensitive to diesel quality;
- The variable-geometry turbocharger and the intake flaps do not tolerate soot;
- Oil leaks from the seals are a regular annoyance;
- Watch the timing belt: if it breaks, it destroys the rocker arms;
- There are no hydraulic lifters, so the valve clearances need adjusting every 100,000 km.
Frequently asked questions about the Mazda WL-C
How much power does the Mazda WL-C make?
The Mazda WL-C develops 143 hp and 330 Nm of torque.
How much oil does the Mazda WL-C take and which one?
Engine oil capacity: 8.0 liters. Recommended oil: 5W-30.
Does the Mazda WL-C have a timing belt or chain?
The Mazda WL-C uses a timing belt.
Is the Mazda WL-C turbocharged?
Yes, the Mazda WL-C is turbocharged (IHI RHV4).
Does the Mazda WL-C need valve clearance adjustment?
Yes, there are no hydraulic lifters, so the valve clearances have to be checked and adjusted periodically.
How long does the Mazda WL-C last?
The typical lifespan of the Mazda WL-C is ~300 000 km with proper maintenance.
What is the fuel consumption of the Mazda WL-C?
Mazda BT-50 2009: city 10.9, highway 7.8, combined 8.9 L/100 km.
What cars was the Mazda WL-C installed on?
Ford Ranger 2 (PJ) in 2006 - 2011; Mazda BT-50 I (UN) in 2006 - 2011.
What are the common problems of the Mazda WL-C?
The Bosch Common Rail system is reliable but very sensitive to diesel quality. The variable-geometry turbocharger and the intake flaps do not tolerate soot. All known problems.
