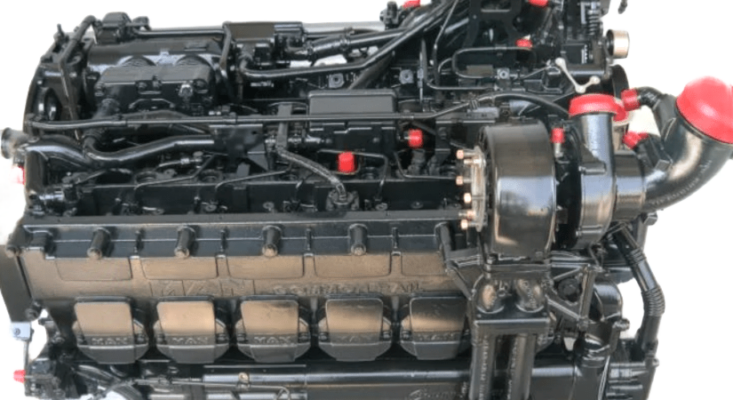

Engine MAN D2866

Engine MAN D2866

The MAN D2866 diesel engine series is available in two versions: D2866 2V and D2866 4V. The 4-stroke engines of this series have 6 cylinders. The engines use a direct injection system, which has many advantages. MAN D2866 engines are equipped with an exhaust turbocharger with an intermediate cooling system. Regular water is used as a coolant in the engines of this model.

MAN D2866 2V are motors designed for industrial use and installed in electricity generators. By the type of load, the generators should be classified as LTP-units (Limited Time Power), that is, they work in the so-called standby mode, which allows them to be used up to 500 hours per year at variable power and 300 hours in a row (with maintenance breaks) without overloads.

The MAN D2866 4V is a motor variant for use in generating sets of the PRP (Prime Power) classification type. This type assumes continuous use of the generator to generate energy for an unlimited number of hours per year. These generators are able to withstand overload unlike the LTP type. True, only 10% of the permissible power and no more than 1 time in 12 hours with a duration of no longer than one hour.

The volume of the MAN D2866 4V is 11.9 liters. The weight of the engines is 1180 kg, and the power generated by them, depending on the modification, is 280 or 322 kW. The maximum torque of the engines of this series is 1782 Nm or 1708 Nm, depending on the configuration.

The working area of ​​the MAN D2866 2V engines is also 11.9 liters. Depending on the modification, the rotation speed can be 1500 rpm (50 Hz) or 1800 rpm (60 Hz). Accordingly, the generated power reaches 360-400 kW.

D 2866 LF34 – 6-cylinder in-line engine with water cooling, produced since 1998. Engine power is 310 hp. (228 kW) with an engine volume of 11967 cc.


Engine’s type diesel
Production years 1998
Power output, kW / rpm 228 – x1800
Power output, hp / rpm 310 – x1800
Displacement, cc 11967
Number of cylinders 6
Valves 12
Torque output, Nm / rpm 1000 – 1500
Compression 17.0:1
Cylinder bore, mm 128
Piston stroke, mm 155
Main bearings 7
Configuration inline
Fuel type diesel
Fuel system direct injection
Turbine turbo / charge air cooler
Euro standards Euro 2/ Euro 3
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water


Engines Series Rated power
(ISO 1585-88195 EWG)
Emission rate
D 2866 LF 36 TGA 310 hp / 228 kW Euro 2
D 2866 LF 37 TGA 360 hp / 265 kW Euro 2
D 2866LF 32 TGA 410 hp / 301 kW Euro 2
D 2876 LF 07 TGA 460 hp / 338 kW Euro 2
D 2866 LF 26 TGA 310 hp / 228 kW Euro 3
D 2866 LF 27 TGA 360 hp / 265 kW Euro 3
D 2866 LF 28 TGA 410 hp / 301 kW Euro 3
D 2876 LF 04 TGA 460 hp / 338 kW Euro 3
D 2876 LF 05 TGA 510 hp / 375 kW Euro 3

Engine MAN D2866

Explanation of the engine type plate

Using the example of the engine type designation D2866 LF 04.

D Fuel type: diesel
28 +100=Bore, e.g. 128 mm ∅
6 Characterizes the piston stroke: 6 = 155 mm, 7 = 166 mm
6 No. of cylinders: 6 = 6 cylinders, 0 = 10 cylinders, 2 = 12 cylinders
L Type of charging: turbo-charging with charge air cooling
F Engine Placement: F = Cab Over Engine Truck, Vertical Engine;
OH = Bus with engine at the rear, vertical engine;
UH = Bus with rear engine, horizontal engine.
04 The engine version is of particular importance when purchasing spare parts.
