Engine Hyundai G4CS

Engine Hyundai G4CS
Displacement
2.4 L2351 cc
Power
110–120 hp
Torque
180–200 Nm
Timing drive
Belt
Engine oil
4.3 L10W-40
Lifespan
~300 000 km

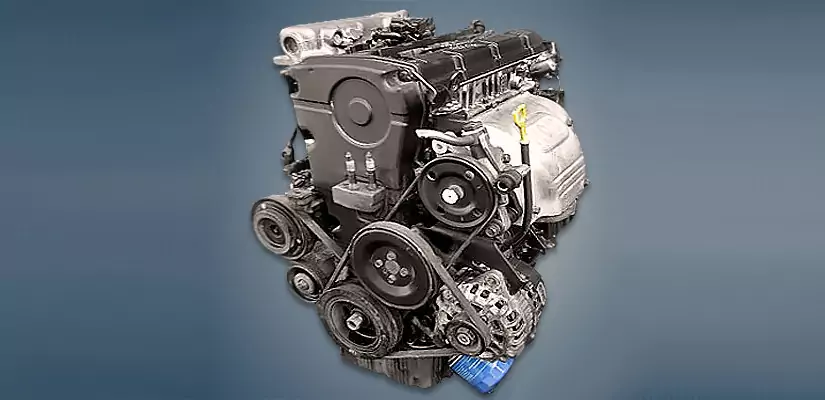

The 2.4-liter Hyundai G4CS engine was produced from 1986 to 2007 under license from Mitsubishi and was essentially a copy of the 8-valve Japanese 4G64 engine. The engine was primarily installed in the Starex van, but was also used in passenger car models.

Sirius family:
1.6 L – G4CR;
1.8 L – G4CN, G4CM, G4JN;
2.0 L – G4CP, G4JP;
2.4 L – G4JS, G4CS.

Specifications

Production years 1986-2007
Displacement, cc 2351
Fuel system injector
Power output, hp 110 – 120
Torque output, Nm 180 – 200
Cylinder block cast iron R4
Block head aluminum 8v
Cylinder bore, mm 86.5
Piston stroke, mm 100
Compression ratio 8.5 – 8.6
Features no
Hydraulic lifters yes
Timing drive belt
Phase regulator no
Turbocharging no
Recommended engine oil 10W-40
Engine oil capacity, liter 4.3
Fuel type petrol
Euro standards EURO 1/2
Fuel consumption, L/100 km (for Hyundai Starex 2003)
— city
— highway
— combined
16.8
9.9
12.7
Engine lifespan, km ~300 000
Weight, kg 159.7 (without attachments)

The engine was installed on:

Disadvantages of the Hyundai G4CS engine

  • The best-known engine issue is the short service life of the timing and balancer shaft belts.
  • Vibrations from the balancer shafts quickly destroy the engine mounts.
  • Using low-quality oil significantly reduces the service life of the hydraulic lifters.
  • At high mileage, the exhaust manifold often cracks, but it can usually be welded.
  • An unstable idle is also common due to contamination of the throttle body or idle speed controller.

Frequently asked questions about the Hyundai G4CS

How much power does the Hyundai G4CS make?

The Hyundai G4CS develops 110 - 120 hp and 180 - 200 Nm of torque.

How much oil does the Hyundai G4CS take and which one?

Engine oil capacity: 4.3 liters. Recommended oil: 10W-40.

Does the Hyundai G4CS have a timing belt or chain?

The Hyundai G4CS uses a timing belt.

Is the Hyundai G4CS turbocharged?

No, the Hyundai G4CS is naturally aspirated.

Does the Hyundai G4CS need valve clearance adjustment?

No, the Hyundai G4CS has hydraulic lifters, so the valve clearances do not need to be adjusted.

How long does the Hyundai G4CS last?

The typical lifespan of the Hyundai G4CS is ~300 000 km with proper maintenance.

What is the fuel consumption of the Hyundai G4CS?

Hyundai Starex 2003: city 16.8, highway 9.9, combined 12.7 L/100 km.

What cars was the Hyundai G4CS installed on?

Hyundai Grandeur 1 (L) in 1986 - 1992, Grandeur 2 (LX) in 1992 - 1998; Hyundai Sonata 2 (Y2) in 1988 - 1991; Hyundai Starex 1 (A1) in 1997 - 2007.

What are the common problems of the Hyundai G4CS?

The best-known engine issue is the short service life of the timing and balancer shaft belts. Vibrations from the balancer shafts quickly destroy the engine mounts. All known problems.

What engines are related to the Hyundai G4CS?

Sirius family: G4CR, G4CN, G4CM, G4JN, G4CP, G4JP, G4JS.
