Engine Hyundai D6CA

Engine Hyundai D6CA

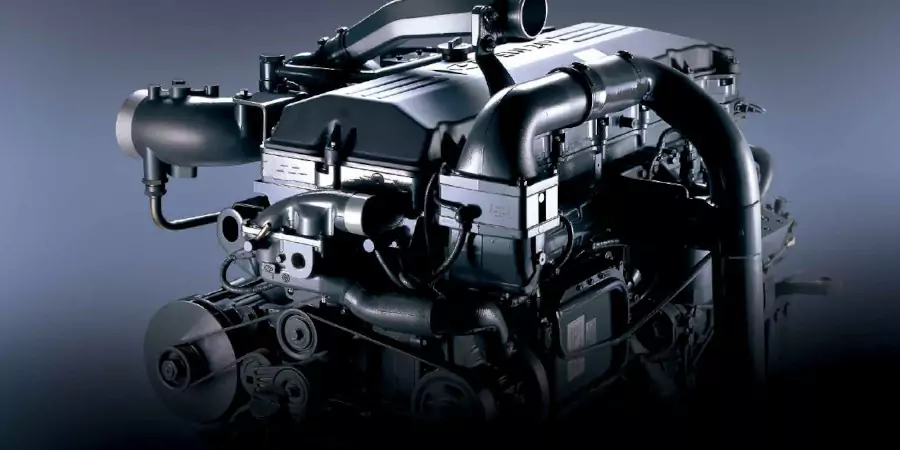

The Hyundai D6CA engine is an in-line 6-cylinder diesel engine with a volume of 12,920 cc 3 with a capacity of up to 440 hp, with a turbocharger. Installed on HD320 / 370, HD700, HD1000 cars and Aero Town buses. Hyundai engines are manufactured at several factories in South Korea, China, India, Turkey, Slovakia and the USA. Hyundai cars are supplied to the post-Soviet market mainly with engines assembled in China, Korean and American engines for the most part remain in the domestic markets.


Manufacturer Hyundai
Also called D6CA
Production years 2014
Configuration inline, 4-stroke, water-cooled diesel
Number of cylinders 6
Valves 12
Firing order 1-5-3-6-2-4
Piston stroke, mm 155
Cylinder bore, mm 133
Displacement, cc 12920
Power output, hp 440 (1800 rpm)
Torque output, Nm / rpm 1950/1400
Compression ratio 17.0:1
Weight, kg 1210 dry, 1265 wet
