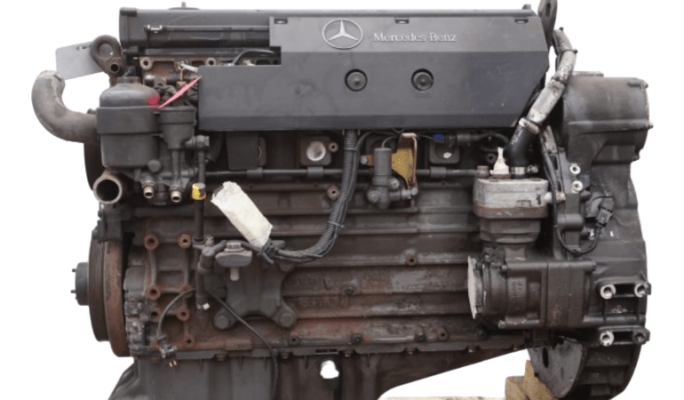

Engine Mercedes OM906LA

High power traction motors are required for transporting heavy loads or when driving on rough roads. For these purposes, 6-cylinder in-line engines of the OM906LA series, produced in modifications from 210 to 300 hp, are the best suited. Thanks to the wide range and low minimum level of 1200 rpm, there is more efficient gear shifting and fuel economy.

In 2006, Mercedes modified the 906th model, making it compliant with Euro-4 and Euro-5 standards. There were modifications x24 with a capacity of 238 hp. (175 kW), a rotational speed of 2200 rpm and a torque of 850 Nm in the range of 1200-1600 rpm; as well as the x26 with 256 hp. (188 kW), a rotation speed of 2200 rpm and a maximum torque of 970 Nm in the range of 1200-1600 rpm.

Specifications

Factory markings OM 906.911 OM 906 LA
Engine’s type diesel
Power output 205 kW / 279 hp
Displacement 6374 cc
Number of cylinders 6 pc.
Valves 18 pc.
Manufacturer Mercedes
Compression ratio 17.4: 1
Torque output 1100 Nm / 1250 rpm
Cylinder bore 102 mm
Piston stroke 130 mm
Main bearings 7 pieces
Operating weight 530 kg
Length 1078 mm
Width 645 mm
Height 940 mm
Combustion chamber working volume 61.05 cc
Power Index 44 hp per liter (1000 cc) displacement
Cooling water

Engine modifications OM 906

  • Engine OM 906.900 Mercedes-Benz with 205 kW (279 HP) For models MB Atego 1828, 2628
  • Engine OM 906.901 Mercedes-Benz 170 kW (231 HP)
  • Engine OM 906.903 Mercedes-Benz with 205 kW (279 hp)
  • Engine OM 906.910 Mercedes-Benz with 170 kW (231 hp) Issued 8/1997. For models MB Atego 1015, 1017, 1018, 1023, 1215, 1217, 1223, 1228, 1317, 1323, 1328, 1517, 1523, 1528, 815, 817, 823, 917, 923
  • Engine OM 906.911 Mercedes-Benz with 205 kW (279 HP) Issued 8/1997. For models MB Atego 1215, 1217, 1223, 1228, 1317, 1323, 1325, 1328, 1517, 1523, 1525, 1528
  • Engine OM 906.912 Mercedes-Benz with 194 kW (260 HP)
  • Engine OM 906.913 Mercedes-Benz with 172 kW (230 HP) For MB Atego 1023, 1323, 1523, 1823, 923, Citaro O 530, Axor 1823, 2623 models
  • Engine OM 906.914 Mercedes-Benz with 157 kW (210 HP) For MB Series 614 models
  • Engine OM 906.915 Mercedes-Benz with 170 kW (231 HP) For MB Atego 1015, 1018, 1023, 1223, 1323, 1523, 823, 923, Business Class M2 models
  • Engine OM 906.916 Mercedes-Benz with 205 kW (279 HP) For MB Atego 1228, 1328, 1528, Business Class M2
  • Engine OM 906.917 Mercedes-Benz with 170 kW (231 HP) For MB Atego 1721 models
  • Engine OM 906.918 Mercedes-Benz 180 kW (245 HP) For MB 500 models
  • Engine OM 906.919 Mercedes-Benz 180 kW (245 HP) For MB Atego 1225, 1325, 1328, 1525, 1528, 915, 925
  • Engine OM 906.920 Mercedes-Benz with 170 kW (231 HP) For MB Atego 1823, 1828, 2523, 2528, 2628
  • Engine OM 906.921 Mercedes-Benz with 205 kW (279 hp) Issued 8/1997. For models MB Atego 1823, 1828, 2523, 2528, 2628, 3228
  • Engine OM 906.922 Mercedes-Benz with 170 kW (231 hp) Issued 8/1997. For models MB Atego 1823, 1828
  • Engine OM 906.923 Mercedes-Benz with 205 kW (279 hp) Issued 8/1997. For models MB Atego 1823, 1828
  • Engine OM 906.924 Mercedes-Benz with 170 kW (231 HP) For MB Series 2423
  • Engine OM 906.925 Mercedes-Benz with 170 kW (231 HP) For MB Atego 1823, 2523, Business Class M2
  • Engine OM 906.926 Mercedes-Benz with 205 kW (279 hp) For MB Atego 1828, 2528, 2628, Business Class M2 models
  • Engine OM 906.927 Mercedes-Benz with 170 kW (231 HP) For MB Atego 1823, Business Class M2
  • Engine OM 906.928 Mercedes-Benz with 205 kW (279 HP) For MB Atego 1828, Business Class M2
  • Engine OM 906.929 Mercedes-Benz with 172 kW (234 HP) For MB Atego 1023, 1223, 1323, 1523, 1823, 823
  • Engine OM 906.930 Mercedes-Benz with 205 kW (279 hp) Issued 8/1997. For MB Citaro O 530 models
  • Engine OM 906.931 Mercedes-Benz 170 kW (231 HP) Issued 8/1997. For MB Citaro O 530 models
  • Engine OM 906.932 Mercedes-Benz with 172 kW (234 HP) For MB UNIMOG U 400, Atego 1023, 1223, 1323, 1523, 823, Citaro O 530, Axor 1823, 2623 models
  • Engine OM 906.933 Mercedes-Benz with a capacity of 209 kW (284 hp) For models MB UNIMOG U 500, Econic 1828, 2628, Atego 1228, 1328, 1528, 1828, 2528, 925, Citaro O 530, Conecto O 345, Axor 2528, 2628, 3228, Tourino O 510
  • Engine OM 906.934 Mercedes-Benz with a capacity of 209 kW (280 HP) Issue 1/1998. For MB Citaro O 530 models
  • Engine OM 906.935 Mercedes-Benz 170 kW (231 HP) Issue 4/2000. For models MB UNIMOG U 500
  • Engine OM 906.936 Mercedes-Benz 172 kW (234 HP) For MB UNIMOG U 400, U 500, Econic 1823, Atego 1023, 1223, 1323, 1523, 1823, 823, 923, Citaro O 530 models , Axor 2623
  • Engine OM 906.937 Mercedes-Benz with 170 kW (231 hp) For MB UNIMOG U 400, Econic 1823, Atego 1023, 1323, 1523, 1823, 823, Citaro O 530, Axor 2623 models
  • Engine OM 906.938 Mercedes-Benz with 205 kW (279 hp) Issue 1/1998. For MB Citaro O 500 models
  • Engine OM 906.939 Mercedes-Benz 180 kW (245 HP) For MB Atego 1225, 1325, 1525, 925
  • Engine OM 906.940 Mercedes-Benz 170 kW (231 HP) Issued 8/1997. For models MB Econic 1823
  • Engine OM 906.941 Mercedes-Benz with 205 kW (279 hp) Issued 8/1997. For models MB Econic 1628,
  • Engine OM 906.944 Mercedes-Benz with 142 kW (190 HP) For MB Freightliner (USA) models
  • Engine OM 906.945 Mercedes-Benz with 142 kW (190 HP) For MB Freightliner (USA) models
  • Engine OM 906.946 Mercedes-Benz 187 kW (250 HP) For models MB Atego 1225, 1325, 1525, Tourino O 510
  • OM 906.947 Mercedes-Benz engine 194 kW (260 HP) For MB Freightliner (USA) models
  • Engine OM 906.948 Mercedes-Benz 224 kW (300 HP) For MB Freightliner (USA) models
  • Engine OM 906.949 Mercedes-Benz 180 kW (245 HP) For models MB Atego 1225, 1325, 1525, Citaro O 530
  • Engine OM 906.950 Mercedes-Benz with 205 kW (279 hp) For MB UNIMOG U 500, Econic 2628, Atego 1228, 1328, 1528, 1828, 2628, 925, Citaro O 530, O 345, Axor models 2528
  • Engine OM 906.951 Mercedes-Benz with 170 kW (231 HP) For MB Econic 1823 models
  • Engine OM 906.952 Mercedes-Benz with 205 kW (279 HP) For MB Econic 1828, 2628
  • Engine OM 906.953 Mercedes-Benz with a power of 205 kW (279 hp) For models MB UNIMOG U 500, Econic 1828, 2628, Atego 1228, 1328, 1528, 1828, 2523, 2628, 925, Citaro O 530, Conecto O 345, Axor 2628, 3228, Tourino O 510
  • Engine OM 906.954 Mercedes-Benz with 172 kW (234 HP) For MB Atego 1223, 1523
  • Engine OM 906.955 Mercedes-Benz with 205 kW (279 HP) Issue 2/2001. For models MB UNIMOG U 500
  • OM 906.956 Mercedes-Benz engine with 209 kW (284 HP) For MB Atego 1828 models
  • Engine OM 906.957 Mercedes-Benz with 142 kW (190 HP) For MB Freightliner (USA) models
  • Engine OM 906.958 Mercedes-Benz 157 kW (210 HP) For MB Freightliner (USA) models
  • Engine OM 906.959 Mercedes-Benz 157 kW (210 HP) For MB Freightliner (USA) models
  • Engine OM 906.960 Mercedes-Benz with 205 kW (279 HP) Issue 1/2001. For models MB Citaro O 530, Conecto O 345
  • Engine OM 906.961 Mercedes-Benz with 205 kW (279 HP) For MB Citaro O 530 models
  • Engine OM 906.962 Mercedes-Benz 180 kW (245 HP) For MB Citaro O 530 models
  • Engine OM 906.963 Mercedes-Benz 180 kW (245 HP) For MB Citaro O 530 models
  • Engine OM 906.964 Mercedes-Benz with power 170-180 kW (231-245 hp) For models MB UNIMOG U 400, Econic 1823, Atego 1023, 1225, 1323, 1325,1523, 1823, 823, Citaro O 530, Axor 1823, 2623, Tourino O 510
  • Engine OM 906.965 Mercedes-Benz with 205 kW (279 hp)
  • Engine OM 906.966 Mercedes-Benz with 172 kW (230 HP)
  • Engine OM 906.967 Mercedes-Benz with 209 kW (280 HP)
  • Engine OM 906.968 Mercedes-Benz 172 kW (230 HP) For models MB Atego 1225, 1325, 1525, Citaro O 530, Tourino O 510
  • Engine OM 906.970 Mercedes-Benz 194-209 kW (260-280 hp) For MB UNIMOG U 500, Econic 1828, Atego 1228, 1328, 1528, 1828, 2528, 2628, 925, Citaro O models 530, Axor 2528, 2628, 3228, Tourino O 510
  • Engine OM 906.971 Mercedes-Benz with power 170-180 kW (231-245 hp) For models MB UNIMOG U 400, Atego 1023, 1225, 1323, 1325, 1523, 1525, 1823, 823, Citaro O 530 , Tourino O 510
  • Engine OM 906.974 Mercedes-Benz with 209 kW (280 HP) For MB Series 1728, O 500
  • Engine OM 906.975 Mercedes-Benz 180 kW (245 HP) For MB Atego 1225, 1325, 1525, Citaro O 530, Tourino O 510
  • Engine OM 906.976 Mercedes-Benz with 209 kW (280 HP)
  • OM 906.977 Mercedes-Benz engine with 209 kW (280 HP) For MB Series 1728, O 500
  • Engine OM 906.978 Mercedes-Benz 142-157 kW (190-210 HP) For MB Freightliner (USA) models
  • Engine OM 906.979 Mercedes-Benz 172-187 kW (230-250 HP) For MB Atego 1225, 1325, 1525, CITARO C 43 AMG (202), Tourino O 510 models
  • Engine OM 906.980 Mercedes-Benz 194-209 kW (260-280 hp) For models MB UNIMOG U 500, Econic 1828, Atego 1228, 1528, 1828, 2528, 2628, 925, Citaro O 530, Conecto O 345, Axor 2528, 2628
  • Engine OM 906.981 Mercedes-Benz 224 kW (300 HP) For MB Freightliner (USA) models
  • Engine OM 906.982 Mercedes-Benz with 170 kW (231 hp) For MB UNIMOG U 400, U 500, Econic 1823, Atego 1023, 1323, 1523, 1823, 823, 923, Citaro O 530, Axor models 1823, 2523, 2623
  • Engine OM 906.983 Mercedes-Benz 180 kW (245 HP)
  • Engine OM 906.985 Mercedes-Benz 180 kW (245 HP) For models MB Atego 1225, 1325, 1525, Citaro O 530, Tourino O 510
  • Engine OM 906.988 Mercedes-Benz 180 kW (245 HP) For models MB Atego 1225, 1325, 1525, Citaro O 530, Tourino O 510
