Engine DAF GR220

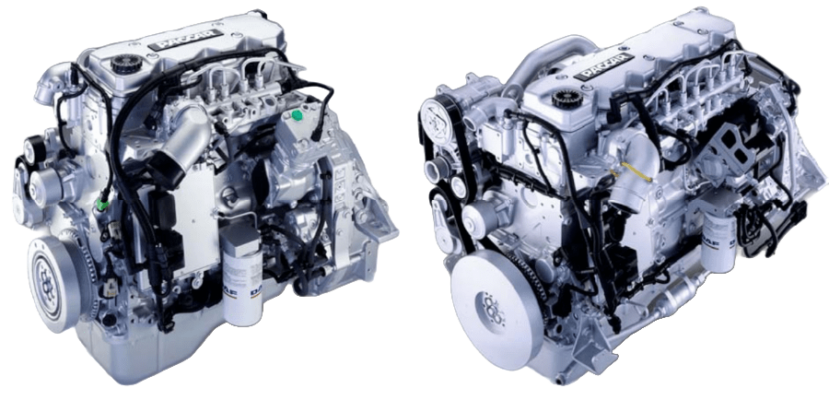

Engine DAF GR220 image

DAF GR220 engines provide high performance for vehicles – they are reliable and efficient. Enhancements have been introduced to increase torque over a wide range of speeds, resulting in increased productivity, operational flexibility, and less frequent gear changes.

With regard to the fuel delivery system, the GR220 uses a high pressure rail in conjunction with an injection system.

Also, the GR220 engines have higher fuel efficiency, which reduces fuel consumption and meets the Euro 5 standards for the concentration of toxic substances in exhaust gases.


Engine’s type diesel
Power output, hp / kW 300 / 220 at 1900 rpm
Displacement, cc 6691
Number of cylinders 6
Valves 24
Torque output, Nm 1100 at 1200-1900 rpm
Production years 03/2006
Cylinder bore, mm 107
Piston stroke, mm 124
Crankshaft bearings 7
Configuration inline
Fuel type diesel
Fuel system direct injection
Turbine turbo / charge air cooler
Euro standards Euro 4
Cylinder head SOHC/OHC
Timing mechanism spur gear
Timing rocker arm
Cooling water

Engine DAF GR220

1. Valve cover; 2. Thermostat casing; 3. Air conditioner compressor; 4. Generator drive; 5. Water pump drive; 6. Auxiliary equipment drive; 7. Oil collector; 8. Electronic control unit; 9. Air supply pipeline; 10. Fuel filter; 11. Fuel pump; 12. Engine cylinder block; 13. Air compressor with a V-shaped belt; 14. High-pressure fuel system with a common fuel distribution ramp.

The main advantages of the GR220

  • Meets high Euro-4 safety standards;
  • Low fuel consumption and technical safety while driving is ensured by electronic fuel injection, and this equipment is of the highest quality;
  • Creates a low noise level, which improves the situation on the roads, especially in settlements, and also increases the comfort of being in the cab;
  • Durable and highly reliable.
