Engine DAF BN 52

Engine DAF BN 52

The DAF BN 52 engine is a 2 liter engine. 4-cylinder, 2 valves per cylinder, 97 mm stroke.

This engine, thanks to its power, quality, reliability and economy of fuel consumption, has proven itself from the best side. Applied on van DAF 400-Series 428-435 2.5 D.

Specifications

Engine’s type diesel
Power output, hp / kW 72 / 53
Displacement, cc 2498
Number of cylinders 4
Valves 8
Compression 21:1
Cylinder bore, mm 90.5
Piston stroke, mm 97
Crankshaft bearings 5
Configuration inline
Fuel type diesel
Fuel system split combustion engine
Turbine intake

DAF BN 52 Components

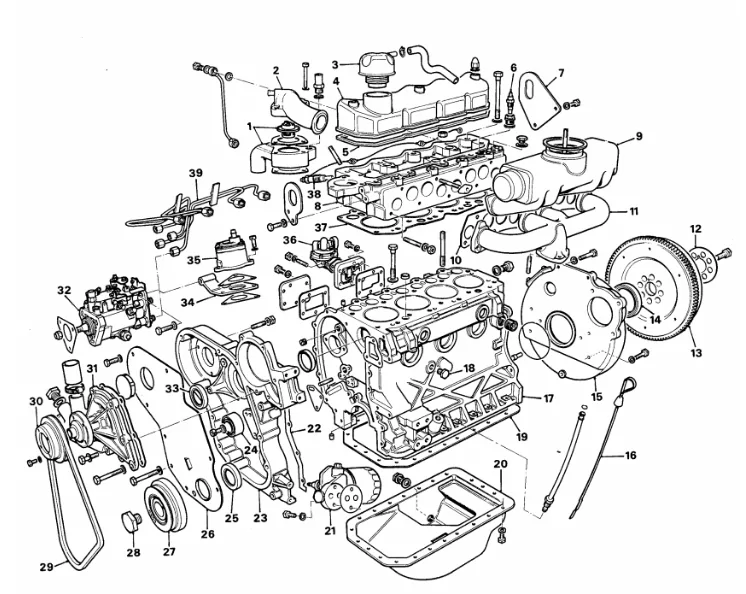

Engine components DAF BN 52

  1. Thermostat and housing;
  2. Water outlet elbow;
  3. Oil filter cover;
  4. Rocker arm cover;
  5. Rocker cover gasket;
  6. Temperature transmitter;
  7. Rear engine lift bracket;
  8. Cylinder head;
  9. Manifold gasket;
  10. Exhaust manifold;
  11. Intake manifold;
  12. Flywheel reinforcement plate;
  13. Flywheel;
  14. Rear crankshaft oil seal;
  15. Flywheel housing;
  16. Probe;
  17. Cylindrical block;
  18. Drain plug;
  19. Oil sump gasket;
  20. Oil pan;
  21. Oil filter;
  22. Timing cover gasket;
  23. Temporary cover;
  24. Idler pulley;
  25. Front crankshaft oil seal;
  26. Front timing case cover;
  27. Torsional vibration damper;
  28. Pulley bolt;
  29. Fan belt;
  30. Water pump drive pulley;
  31. Pump;
  32. Fuel injection pump;
  33. Front camshaft oil seal;
  34. Injection pump bracket;
  35. Vacuum pump;
  36. Fuel lift pump;
  37. Cylinder head gasket;
  38. Heater plug;
  39. Fuel injection pipes
